Shop RULAND

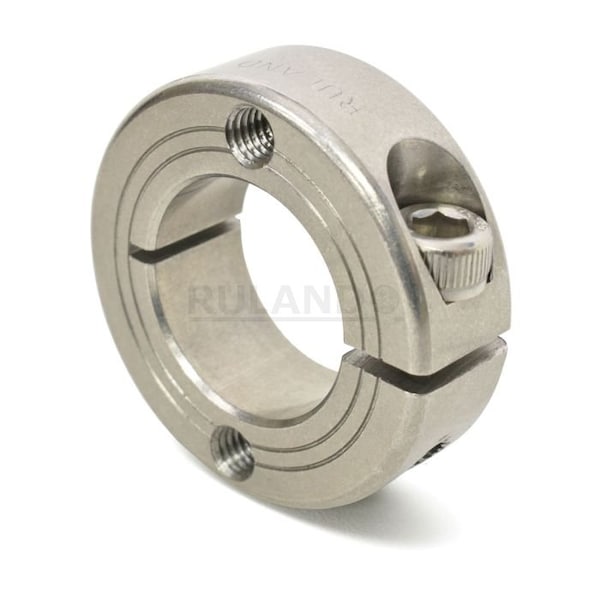

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-6E-SS
  • Zoro # G608675744
product price:
$
19.19
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M3
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FHT-MCL-6E-SS
Zoro #
G608675744
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Item
Mountable Shaft Collar
Screw Seating Torque
1.1 N-m
Shaft Locking Type
Clamp-On
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material
Stainless Steel
Minimum Operating Temperature
-40 Degrees C
Collar Construction
1-Piece
Collar Material Grade
303
Collar Material Finish
Bright
Included Screws
Clamp Screw
Resistance Properties
Corrosion-Resistant
Screw Material Finish
Bright
Maximum Operating Temperature
176 Degrees C
Screw Location from Center
8.51 mm
Screw Material Grade
18-8 300 Series
Component Mount Type
Face Mount Holes
Bore Type
Round
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
