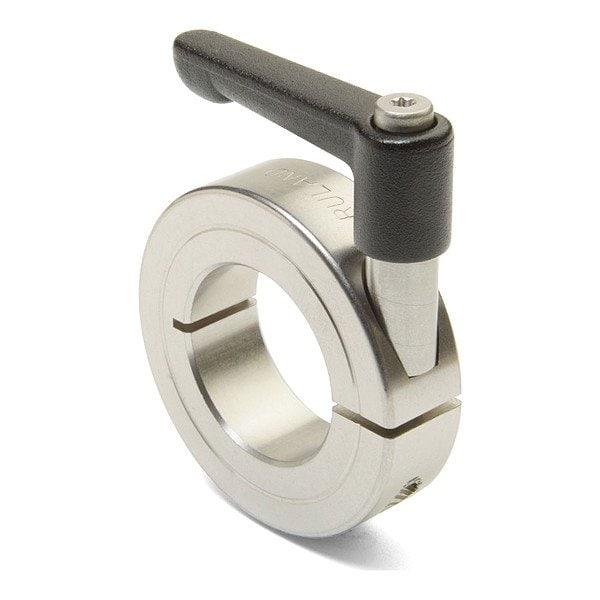

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-16-ST
Zoro # G808677258
product price:Â
$
63.69
/ea
Key Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
For Shaft Diameter
16 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-16-ST
- Zoro #
- G808677258
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- System of Measurement
- Metric
- Handle Color
- Black
- Shaft Locking Type
- Clamp-On
- Collar Material
- Stainless Steel
- Shaft Tolerance
- +0.000/-0.013 mm
- Screw Location from Center
- 12.5 mm
- Center to Lever Top
- 35.2 mm
- Bore Type
- Round
- Screw Material Grade
- 303
- Handle Material
- Zinc
- Collar Material Grade
- 316
- Collar Material Finish
- Bright
- Handle Material Finish
- Powder Coated
- Resistance Properties
- Corrosion-Resistant
- Collar Construction
- 1-Piece
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 316, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
