Shop RULAND

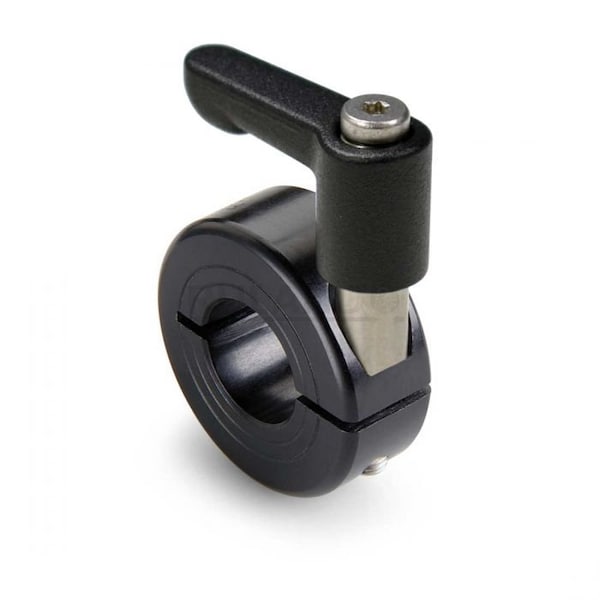

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-MCL-18E-AN

  • Zoro # G508677336

product price:  $52.39
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LV-MCL-18E-AN
Zoro #
G508677336
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
1 1/8 in
Bore Diameter
1 1/8 in
Collar Outside Diameter
48 mm
Lever Length
45 mm
Screw Thread Size
M6
Collar Width
15 mm
Lever Height
38.5 mm

Details

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Item
Quick Clamping Shaft Collar
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Handle Material Finish
Powder Coated
Screw Material Grade
303
Handle Material
Zinc
Collar Material
Aluminum
Lever Part Number
LF45-CL-M6: 18-ZS
Shaft Locking Type
Clamp-On
Collar Material Finish
Anodized
Collar Construction
1-Piece
Resistance Properties
Corrosion-Resistant
Screw Location from Center
19 mm
Handle Color
Black
Shaft Tolerance
+0.0000/-0.0005 in
Center to Lever Top
38.8 mm
Collar Material Grade
2024
Bore Type
Round
Number of Screws
1
Weight
0.1964 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 48 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
