  6. Shaft Collar, Titanium, 3/8 in, 26.3 mm

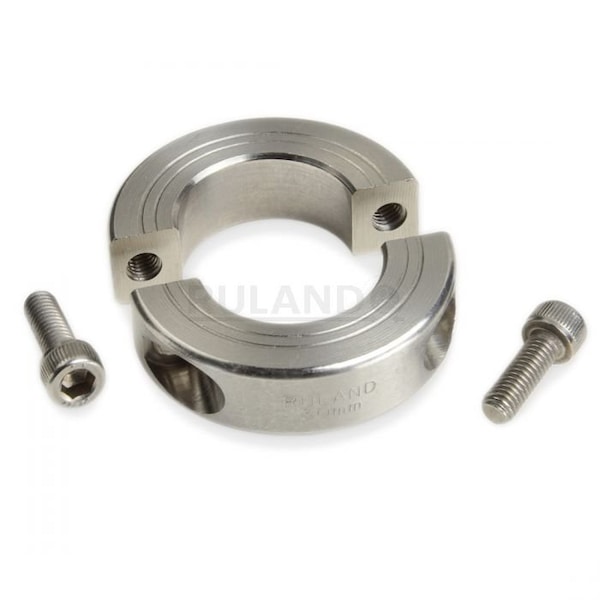

Ruland Shaft Collar, Titanium, 3/8 in, 26.3 mm MSP-6E-TI - main

Shaft Collar, Titanium, 3/8 in, 26.3 mm

  • Mfr # MSP-6E-TI

  • Zoro # G608672149

product price:  $156.99
/ea
Free Shipping & Returns

Key Features

Screw Material
Titanium
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Width Tolerance
+0.076/-0.254 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MSP-6E-TI
Zoro #
G608672149
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
Collar Width
9 mm
For Shaft Diameter
3/8 in
Collar Outside Diameter
24 mm
Bore Diameter
3/8 in
Clearance Diameter
26.3 mm
Screw Thread Size
M3
Screw Size
M3
Outside Dia.
24 mm
Bore Dia.
0.3750 in
Clearance Dia.
26.3 mm
Width
9 mm
Dimension Type
Metric with Inch Bore

Details

Screw Material
Titanium
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Shaft Collar
Included Screws
(2) Clamp Screw
Shaft Locking Type
Clamp On
Collar Material
Titanium
Collar Material Finish
Bright
Collar Material Grade
Grade 5
Screw Material Finish
Bright
Shaft Tolerance
+0.0000/-0.0005 in
Minimum Operating Temperature
-40 Degrees F
Collar Construction
2-Piece
Bore Type
Round
Maximum Operating Temperature
500 Degrees F
Screw Location from Center
8.51 mm
Screw Location (R)
8.51 mm
Number of Screws
2
Finish
Bright, No Plating
Operating Temp. Range
-40 Degrees to 500 Degrees F
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Weight
0.0291 lbs
Screw Finish
Bright
Material
Titanium Grade 5
Collar Style
Clamp
Number of Pieces
2

Description

Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Titanium, Keyway Width Not Applicable, Collar Material Grade Grade 5, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Titanium
