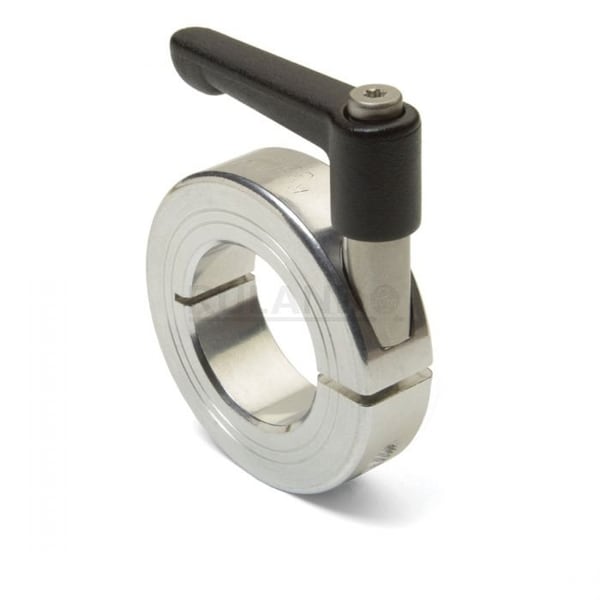

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-38-A
Zoro # G908678193
product price:Â
$
45.39
/ea
Key Features
Screw Material
Stainless Steel
Screw Seating Torque
16 N-m
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Width Tolerance
+0.076/-0.254 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-38-A
- Zoro #
- G908678193
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Screw Seating Torque
- 16 N-m
- Item
- Quick Clamping Shaft Collar
- System of Measurement
- Metric
- Bore Tolerance
- +0.050/+0.012 mm
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Shaft Locking Type
- Clamp-On
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Construction
- 1-Piece
- Collar Material Finish
- Bright
- Bore Type
- Round
- Center to Lever Top
- 40.8 mm
- Screw Material Grade
- 303
- Screw Location from Center
- 24.99 mm
- Collar Material Grade
- 2024
- Handle Color
- Black
- Collar Material
- Aluminum
- Handle Material Finish
- Powder Coated
- Handle Material
- Zinc
- Lever Part Number
- LF45-CL-M6: 20-ZS
- Number of Screws
- 1
- Weight
- 0.2474 lbs
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 38 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
