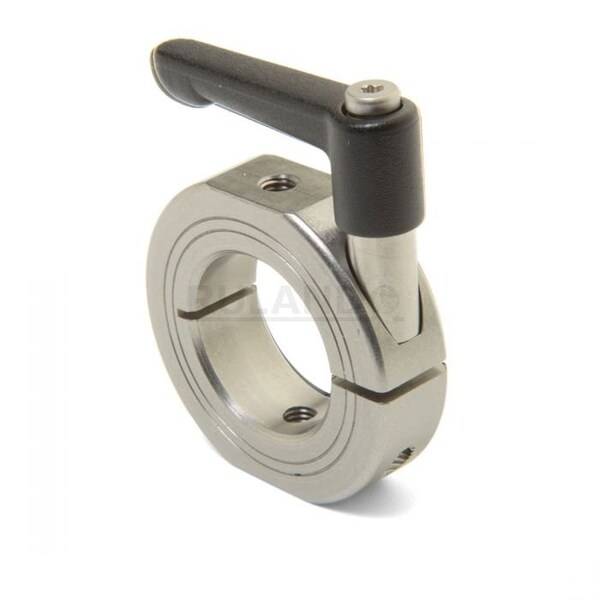

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-OF-MCL-10E-SS
Zoro # G908675895
product price: $57.19
/eaKey Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
5.4 N-m
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LV-OF-MCL-10E-SS
Zoro #
G908675895
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
5/8 in
Bore Diameter
5/8 in
Collar Width
13 mm
Mount Hole Thread Size
M5
Collar Outside Diameter
34 mm
Screw Thread Size
M5
Lever Length
30 mm
Lever Height
35 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion Resistant
