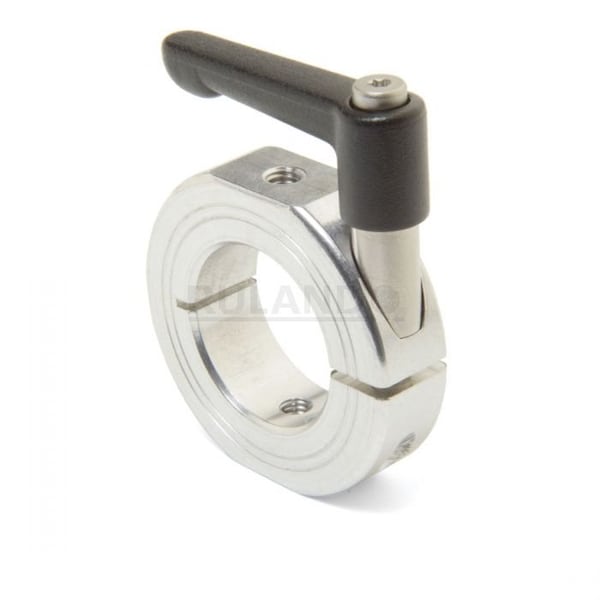

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-OF-MCL-16-A
Zoro # G508675929
product price: $39.99
/eaKey Features
Screw Material
Stainless Steel
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
9.5 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LV-OF-MCL-16-A
Zoro #
G508675929
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Lever Height
35 mm
Bore Diameter
16 mm
Screw Thread Size
M5
Collar Width
13 mm
Lever Length
30 mm
For Shaft Diameter
16 mm
Collar Outside Diameter
34 mm
Mount Hole Thread Size
M5
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 9.5 N-m, Bore Tolerance +0.050/+0.012 mm
