Shop RULAND

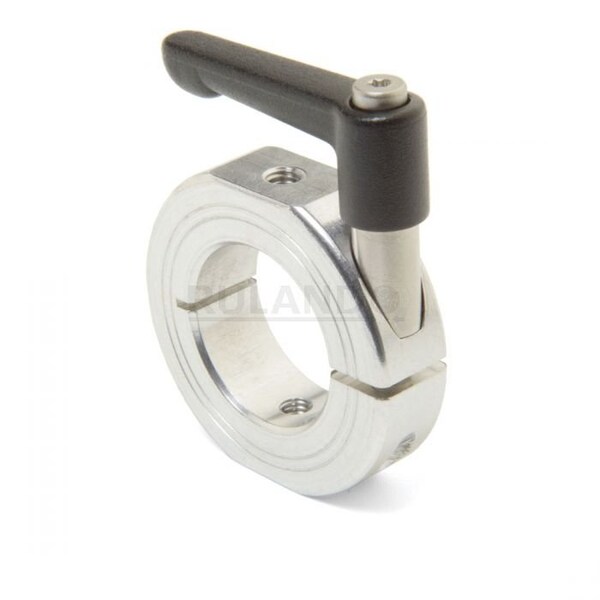

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MCL-40-A

  • Zoro # G208677186

product price:  $58.39
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LV-OF-MCL-40-A
Zoro #
G208677186
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M6
Collar Width
15 mm
For Shaft Diameter
40 mm
Collar Outside Diameter
60 mm
Bore Diameter
40 mm
Mount Hole Thread Size
M6
Lever Height
40.5 mm
Lever Length
45 mm

Details

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Distance Across Flats
55 mm
Screw Seating Torque
16 N-m
System of Measurement
Metric
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
Shaft Locking Type
Clamp-On
Center to Lever Top
40.8 mm
Handle Material Finish
Powder Coated
Collar Material Finish
Bright
Collar Construction
1-Piece
Handle Color
Black
Component Mount Type
Outer Diameter Holes with Wrench Flats
Collar Material Grade
2024
Screw Material Grade
303
Flat to Bore
7.5 mm
Handle Material
Zinc
Collar Material
Aluminum
Screw Location from Center
24.99 mm
Bore Type
Round
Shaft Tolerance
+0.000/-0.013 mm
Lever Part Number
LF45-CL-M6: 20-ZS
Number of Screws
1
Weight
0.2273 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 40 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
