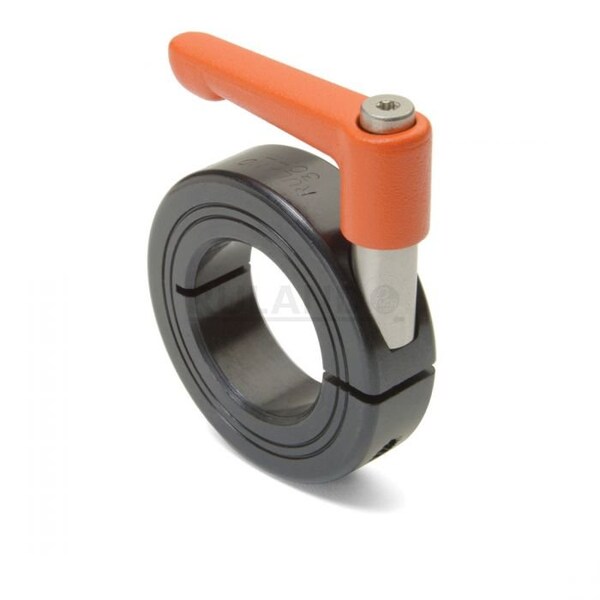

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-7E-F
Zoro # G308677048
product price:Â
$
33.99
/ea
Key Features
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-7E-F
- Zoro #
- G308677048
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Item
- Quick Clamping Shaft Collar
- Bore Tolerance
- +0.0020/+0.0005 in
- System of Measurement
- Metric with Inch Bore
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 4.6 N-m
- Resistance Properties
- Corrosion-Resistant
- Lever Part Number
- LF30-CL-M4: 12-ZS-O
- Screw Material Grade
- 303
- Collar Material Finish
- Black Oxide
- Screw Location from Center
- 10.01 mm
- Collar Construction
- 1-Piece
- Handle Color
- Orange
- Collar Material Grade
- 1215
- Bore Type
- Round
- Shaft Tolerance
- +0.0000/-0.0005 in
- Handle Material Finish
- Powder Coated
- Handle Material
- Zinc
- Shaft Locking Type
- Clamp-On
- Collar Material
- Carbon Steel
- Center to Lever Top
- 32.2 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
