Ruland SHAFT COLLAR QUICK CLAMPING LVO-OF-MCL-25-F - main

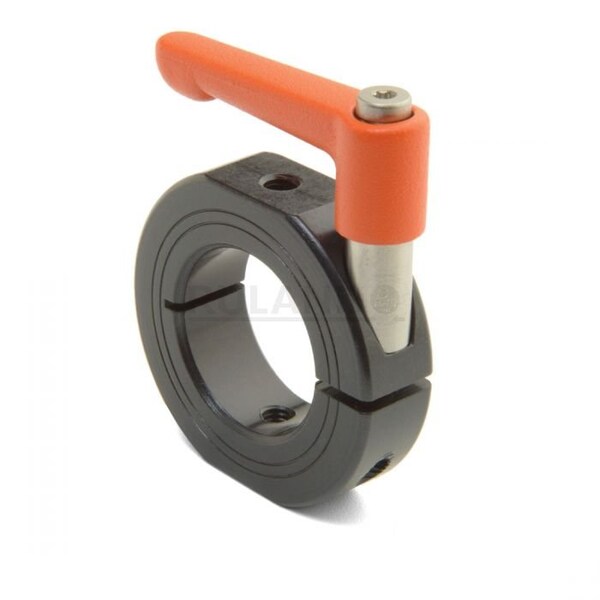

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MCL-25-F

  • Zoro # G208673737

product price:  $43.19
/ea

Key Features

Bore Dia.
25 mm
Material
Steel
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
45 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LVO-OF-MCL-25-F
Zoro #
G208673737
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
25 mm
Outside Dia.
45 mm
Width
15 mm
Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
25 mm
Lever Length
45 mm
Collar Width
15 mm
Bore Diameter
25 mm
Collar Outside Diameter
45 mm
Screw Thread Size
M6
Lever Height
38.5 mm
Mount Hole Thread Size
M6

Details

Material
Steel
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
303 Stainless Steel
Screw Seating Torque
16 N-m
Item
Quick Clamping Shaft Collar
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Distance Across Flats
41 mm
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Bore Type
Round
Collar Material
Carbon Steel
Resistance Properties
Corrosion Resistant
Screw Location from Center
17.5 mm
Lever Part Number
LF45-CL-M6: 18-ZS-O
Handle Material
Zinc
Component Mount Type
Outer Diameter Holes with Wrench Flats
Collar Construction
1-Piece
Center to Lever Top
38.8 mm
Collar Material Grade
1215
Collar Material Finish
Black Oxide
Shaft Locking Type
Clamp On
Handle Material Finish
Powder Coated
Shaft Tolerance
+0.000/-0.013 mm
Handle Color
Orange
Screw Material Grade
303
Flat to Bore
8 mm
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Flat to Bore (FB)
8 mm
Weight
0.3365 lbs
Number of Screws
1
Screw Location (R)
17.50 mm
Threaded Mounting Hole
M6
Finish
Black Oxide

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 25 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 16 N-m
