Shop RULAND

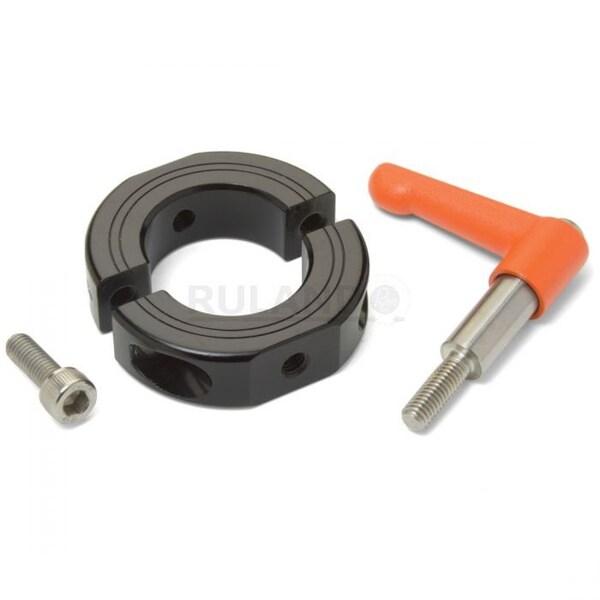

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MSP-16-AN

  • Zoro # G908675147

product price:
$
65.19
/ea

Key Features

Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
Distance Across Flats
30 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVO-OF-MSP-16-AN
Zoro #
G908675147
UPC #
-
Country of Origin
United States
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
Distance Across Flats
30 mm
Screw Seating Torque
9.5 N-m
Item
Quick Clamping Shaft Collar
Bore Tolerance
+0.050/+0.012 mm
Handle Color
Orange
Handle Material Finish
Powder Coated
Screw Location from Center
12.5 mm
Handle Material
Zinc
Collar Material Grade
2024
Screw Material Grade
303
Lever Part Number
LF30-CL-M5: 15-ZS-O
Component Mount Type
Outer Diameter Holes with Wrench Flats
Flat to Bore
7 mm
Shaft Locking Type
Clamp-On
Resistance Properties
Corrosion-Resistant
Collar Material Finish
Anodized
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
Aluminum
Center to Lever Top
35.2 mm
Bore Type
Round
Collar Construction
2-Piece
Weight
0.1122 lbs
Number of Screws
2
Collar Style
Shaft Collar with Clamping Lever
Number of Pieces
2

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
