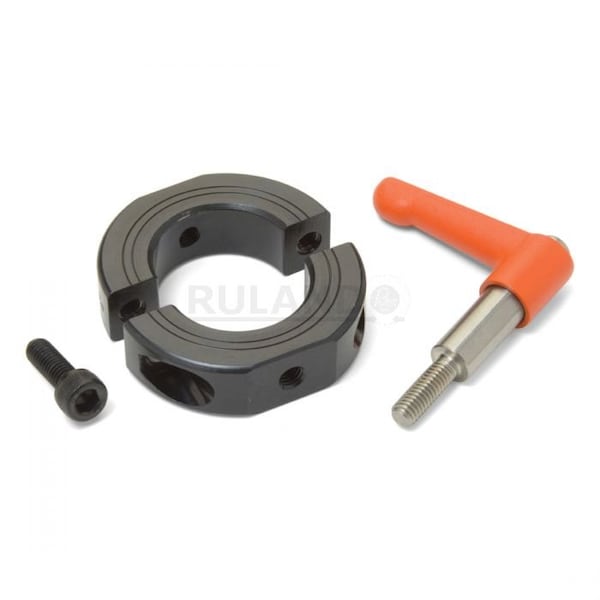

Ruland SHAFT COLLAR QUICK CLAMPING LVO-OF-MSP-16E-F - main

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MSP-16E-F

  • Zoro # G008675146

product price:  $58.79
/ea

Key Features

Bore Dia.
1.0000 in
Material
Steel
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
45 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LVO-OF-MSP-16E-F
Zoro #
G008675146
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
1.0000 in
Outside Dia.
45 mm
Dimension Type
Metric with Inch Bore
Width
15 mm
Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
1 in
For Shaft Diameter
1 in
Screw Thread Size
M6
Collar Outside Diameter
45 mm
Collar Width
15 mm
Mount Hole Thread Size
M6
Lever Height
38.5 mm
Lever Length
45 mm

Details

Material
Steel
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
16 N-m
Item
Quick Clamping Shaft Collar
System of Measurement
Metric with Inch Bore
Distance Across Flats
26 mm
Shaft Locking Type
Clamp On
Collar Material Grade
1215
Lever Part Number
LF45-CL-M6: 18-ZS-O
Screw Material Grade
303
Bore Type
Round
Shaft Tolerance
+0.0000/-0.0005 in
Center to Lever Top
38.8 mm
Handle Material
Zinc
Handle Color
Orange
Screw Location from Center
17.5 mm
Component Mount Type
Outer Diameter Holes with Wrench Flats
Collar Construction
2-Piece
Flat to Bore
6 mm
Resistance Properties
Corrosion Resistant
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Handle Material Finish
Powder Coated
Finish
Black Oxide
Screw Location (R)
17.50 mm
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Flat to Bore (FB)
6 mm
Number of Screws
2
Weight
0.3239 lbs
Threaded Mounting Hole
M6

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
