Shop RULAND

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MSP-20E-AN

  • Zoro # G908675017

product price:
$
86.39
/ea

Key Features

Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Distance Across Flats
50 mm
Width Tolerance
+0.076/-0.254 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVO-OF-MSP-20E-AN
Zoro #
G908675017
UPC #
-
Country of Origin
United States
Screw Material
Stainless Steel
Item

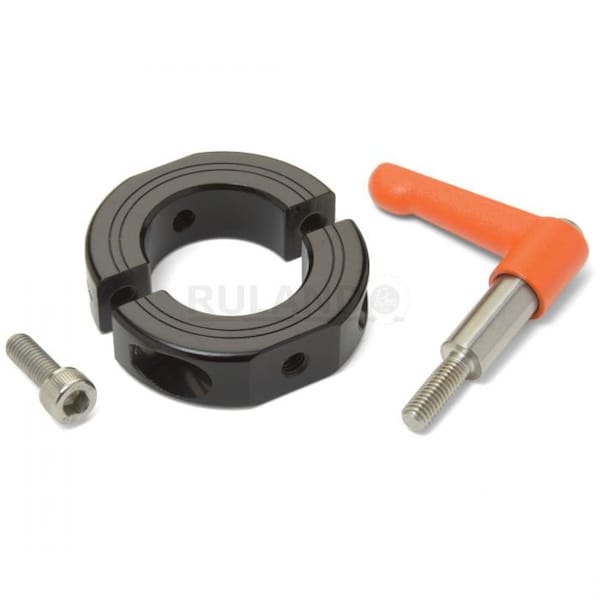

Quick Clamping Shaft Collar
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Distance Across Flats
50 mm
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Screw Material Grade
303
Handle Material Finish
Powder Coated
Component Mount Type
Outer Diameter Holes with Wrench Flats
Resistance Properties
Corrosion-Resistant
Collar Construction
2-Piece
Collar Material Grade
2024
Handle Material
Zinc
Collar Material Finish
Anodized
Lever Part Number
LF45-CL-M6: 20-ZS-O
Bore Type
Round
Center to Lever Top
40.8 mm
Flat to Bore
7.5 mm
Handle Color
Orange
Collar Material
Aluminum
Screw Location from Center
21.49 mm
Shaft Locking Type
Clamp-On
Shaft Tolerance
+0.0000/-0.0005 in
Weight
0.2277 lbs
Number of Screws
2
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
