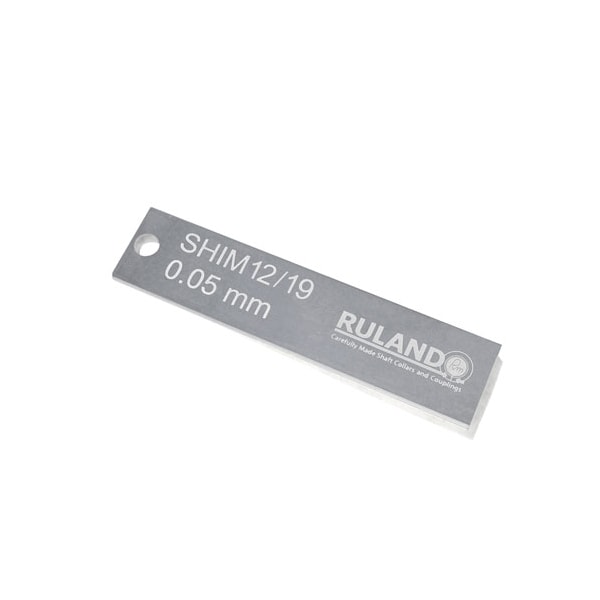

Shim Pack for Ruland Jaw & Oldham Couplings with 3/4" or 19.1mm OD
Mfr # SHIM12/19-A-KIT
Zoro # G3399264
product price:Â
$
12.39
/ea
Key Features
Thickness Tolerance
+0.0003/-0.0000 mm
Weight
0.001572 lbs
Length
1.250 in (31.8 mm)
Width
0.210 in (5.33 mm)
Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SHIM12/19-A-KIT
- Zoro #
- G3399264
- UPC #
- 634529305423
- Country of Origin
- Germany
Dimensions
- Length
- 1.250 in (31.8 mm)
- Width
- 0.210 in (5.33 mm)
- Layer Thickness
- 0.002 in (0.05 mm)
- Pack Thickness
- 0.063 in (1.6 mm)
Details
- Thickness Tolerance
- +0.0003/-0.0000 mm
- Weight
- 0.001572 lbs
- Material
- Aluminum
- Number of Layers
- 32
- Lawyers Required, Oldham Coupling
- 2
- Measurement Type
- Inch/Metric
- Layers Required, Jaw Coupling
- 10
Description
Ruland shims are a pack of aluminum shims designed to during assembly of Ruland manufactured zero-backlash jaw and oldham couplings. They come with 32 layers that can be peeled off with a knife or other sharp object and are made from 5052 aluminum for corrosion resistance, rigidity, and durability. Shims maintain the correct spacing between the hubs and insert of the coupling allowing it to reach its full misalignment capabilities. The shim slides in between the hub and insert while the user is assembling the coupling and is removed once assembly is finished. This shim is designed to fit zero-backlash jaw and oldham couplings with an identifier of 12/19 and manufactured by Georg Martin GmbH in Germany.. All shims are RoHS and REACH compliant.
