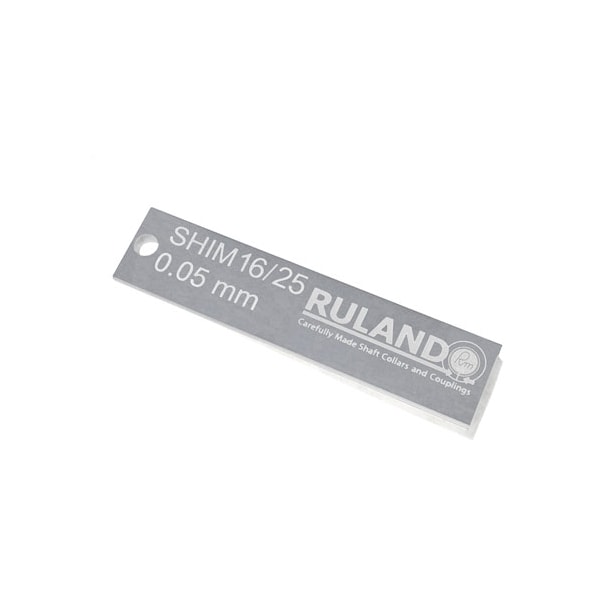

Shim Pack for Ruland Jaw & Oldham Couplings with 1" or 25.4mm OD

  • Mfr # SHIM16/25-A-KIT

  • Zoro # G3397934

product price:  $12.99
/ea

Key Features

Thickness Tolerance
+0.0003/-0.0000 mm
Weight
0.002652 lbs
Length
1.500 in (38.1 mm)
Width
0.292 in (7.42 mm)
Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHIM16/25-A-KIT
Zoro #
G3397934
UPC #
634529305430
Country of Origin
Germany

Dimensions

Length
1.500 in (38.1 mm)
Width
0.292 in (7.42 mm)
Pack Thickness
0.063 in (1.6 mm)
Layer Thickness
0.002 in (0.05 mm)

Details

Thickness Tolerance
+0.0003/-0.0000 mm
Weight
0.002652 lbs
Material
Aluminum
Layers Required, Jaw Coupling
15
Lawyers Required, Oldham Coupling
2
Number of Layers
32
Measurement Type
Inch/Metric

Description

Ruland shims are a pack of aluminum shims designed to during assembly of Ruland manufactured zero-backlash jaw and oldham couplings. They come with 32 layers that can be peeled off with a knife or other sharp object and are made from 5052 aluminum for corrosion resistance, rigidity, and durability. Shims maintain the correct spacing between the hubs and insert of the coupling allowing it to reach its full misalignment capabilities. The shim slides in between the hub and insert while the user is assembling the coupling and is removed once assembly is finished. This shim is designed to fit zero-backlash jaw and oldham couplings with an identifier of 16/25 and manufactured by Georg Martin GmbH in Germany.. All shims are RoHS and REACH compliant.
