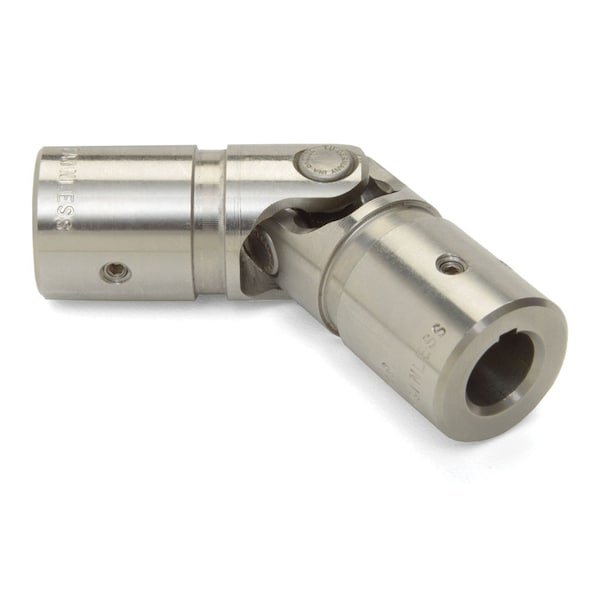

Single U-Joint, 5/8" x 5/8" Bores, 1.245" OD, Stainless
Mfr # USKC20-10-10-SS
Zoro # G900674193
product price:
$
400.99
/ea
Free Shipping & Returns
Key Features
Type
Single, Needle Bearing
Outside Dia.
1.245 in
Bore
0.6250 in x 0.6250 in
Lubrication
LUBRIPLATE No. 1200-2
Keyway
3/16 in x 3/16 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- USKC20-10-10-SS
- Zoro #
- G900674193
- UPC #
- 63452929039
- Country of Origin
- United States
- Type
- Single, Needle Bearing
- Bore
- 0.6250 in x 0.6250 in
- Lubrication
- LUBRIPLATE No. 1200-2
- Keyway
- 3/16 in x 3/16 in
- Setscrew
- 5/16-18
- Material
- 303 Stainless Steel
- SAE or Metric
- Inch
- Weight
- 0.812 lbs
- B1 Shaft Penetration
- 1.250 in
- Matching Boot
- UBOOT20/32-NI-KIT
- Style
- Roud Bore, Set Screw, Keyway
- Max Operating Angle
- 45°
- B2 Shaft Penetration
- 1.250 in
- Bore Tolerance
- +0.0010 in / -0.0000 in
Description
This Ruland single needle bearing universal joint with set screws and keyways has 0.6250" x 0.6250" bores, a 1.245" outer diameter, and a 3.750" length. It is designed for continuously rotating applictions where improved accuracy, service life, and speed are required. The use of needle roller bearings reduces friction allowing for minimal backlash while maintaining high misalignment capabilities of up to 45°, which is a significant improvement over commodity style needle bearing universal joints. This needle bearing universal joint is capable of speeds up to 6,000 RPM with pre-lubricated boots for a long maintenance free life. It is made from stainless steel for corrosion resistance. The user can add a boot to protect the joint from unwanted contaminants and increase service life. This single needle bearing universal joint is manufactured in the USA.
