Shop All Universal Joints
Ruland

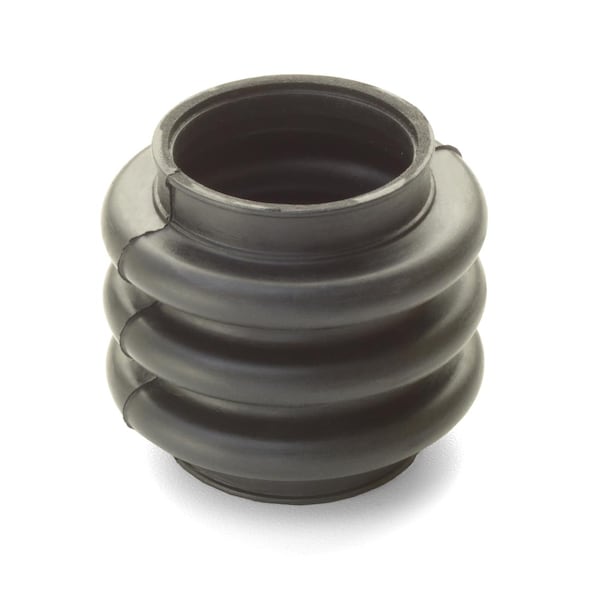

U-Joint Boot, Fits Belden Joints With A 1.245" (31.6 mm) OD, Nitrile
Mfr # UBOOT20/32-NI-KIT
Zoro # G500676474
product price: $32.59
/ea
$32.59
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Nitrile
- Length 2.090 in (53.1mm)
- Weight 0.036 lbs
- Matching Joint Outer Diameter 1.245 in (31.6 mm)
- Measurement Type Inch/Metric
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ruland
- MFR # UBOOT20/32-NI-KIT
- Zoro # G500676474
- UPC # 63452928937
- Country of Origin United States
- Category Universal Joints
Dimensions
| Length | 2.090 in (53.1mm) |
| Matching Joint Outer Diameter | 1.245 in (31.6 mm) |
| Boot Outside Dia. (In.) | 1.88 in (47.8 mm) |
Details
| Material | Nitrile |
| Weight | 0.036 lbs |
| Measurement Type | Inch/Metric |
| Recommended Lubricant | LUBRIPLATE No. 1200-2 |
| Number of Bellows | 3 |
Description
This Nitrile boot cover kit can be used on Ruland single and double universal joints beginning with US20, USSK20, UD20, UDSK20, MUS32, and MUSSK32. It helps protect the joint(s) from dust, chemicals, metal chips, and other unwanted contaminants. The user can pack the boot with grease during installation to extend the service life of the joint(s) and reduce downtime for maintenance. The boot ends fit into mating grooves on joint yokes and cener spacers and can be properly seated using the supplied zip ties. Nitrile is ideal for harsh environments that require a boot with durability and abrasion resistance to prevent it from tearing during operation. It also has high resistance to petroleum-based oils and fuels, silicone greases, hydraulic fluids, water, and alcohol.
