  9. Pump, 3/4 MNPT Tapered, 4.2A
This item is Discontinued.

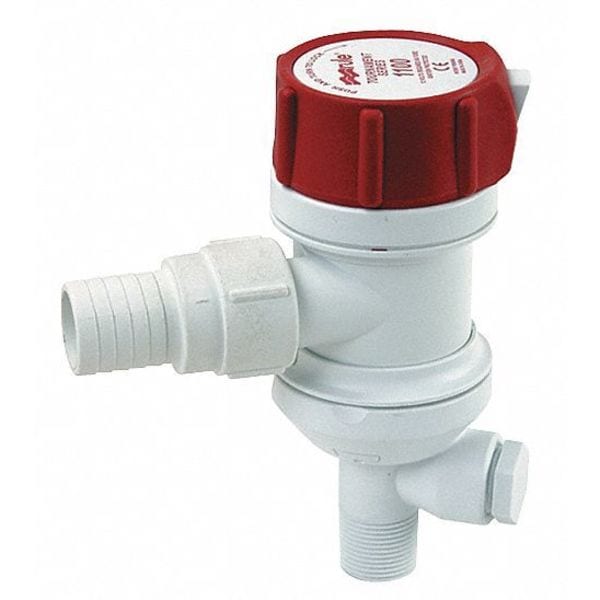

Rule Pump, 3/4 MNPT Tapered, 4.2A 403FC

Pump, 3/4 MNPT Tapered, 4.2A (Discontinued)

  • Mfr # 403FC
  • Zoro # G2964297
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
403FC
Zoro #
G2964297
UPC #
042237095947
Country of Origin
Mexico

Dimensions

Cord Length (Ft.)
2
Dia. (In.)
3
Height (In.)
6
Diameter
3 in
Overall Height
6 in
Overall Width
3 in
Compatible Discharge Pipe Size
3/4 in
Compatible Intake Pipe Size
3/4 in

Details

Item
Livewell Pump
Max. Head
13 ft
Amps
5 A
Includes
3/4" Right Angle Hosebarb Adapter and 3/4" Straight Hosebarb Adapter
GPH of Water @ 10 Ft. of Head
120
Hose Outlet (In.)
3/4 NPSM
GPH of Water @ 6.7 Ft. of Head
285
Design
Glass Filled Nylon Base, Housing and Impeller, Stainless Steel Shaft, Permanent Magnet Motor and Dual Shaft Seal
Shaft Material
Stainless Steel
GPH of Water @ 5 Ft. of Head
360
Material
Glass Filled Nylon
Type
Marine Circulation
Operation
Nonautomatic
GPH of Water @ 0 Ft. of Head
800
Inlet
3/4" MNPT Tapered
GPH of Water @ 3.35 Ft. of Head
438
Voltage
12VDC
Max. Head (Ft.)
13
Application
Used as a Water Circulation Pump in Livewell/Baitwell Tanks
Rated Voltage
12V DC
Body Material
Glass Filled Nylon
Maximum Flow Rate @ 1 Feet of Head
800 gph
Maximum Feet of Head
13 ft
Discharge Connection Style
NPSM
Nameplate Voltage
12V DC
Intake Thread Type
NPT
Compatible Media Type
Water
Electrical Connection Type
Hardwired
Pump Activation Type
Electrically Activated
Discharge Location
Side
Pump Type
Submersible
Pump Housing Material
Glass Filled Nylon
Intake Connection Style
Seacock
Horsepower
33/1000 hp

Description

Livewell Pump, Compatible Media Type Water, Horsepower 33/1000 hp, Maximum Feet of Head 13 ft, Nameplate Voltage 12V DC, Maximum Flow Rate @ 1 Foot of Head 800 gph, Discharge Connection Style NPSM, Intake Connection Style Seacock, Discharge Location Side, Amps 5 A, Compatible Discharge Pipe Size 3/4 in, Electrical Connection Type Hardwired, Includes 3/4 In. Right Angle Hosebarb Adapter and 3/4 In. Straight Hosebarb Adapter, Compatible Intake Pipe Size 3/4 in, Intake Thread Type NPT

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
