Shop RWM

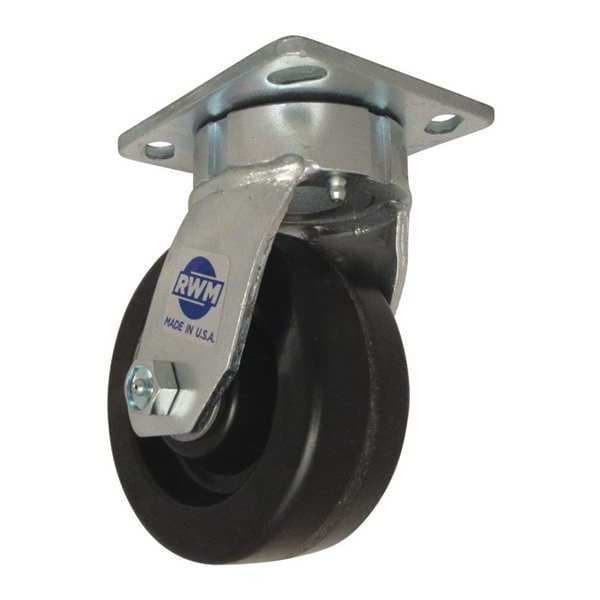

Kingpinless Swivel Plate Caster, 1200 lb.

  • Mfr # 65-DUR-0620-S

  • Zoro # G6530946

product price:
$
82.49
/ea

Key Features

Core Color
Black
Non-Marking
Yes
Overall Height
7-1/2"
Extended Lead
No
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-DUR-0620-S
Zoro #
G6530946
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/2"
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
1/4in

Details

Core Color
Black
Non-Marking
Yes
Item
Plate Caster
Extended Lead
No
Caster Frame Material
Steel
Load Rating
1200 lb
Caster Temp. Range Available
Yes
Caster Brake Included
No
Application
Tow Lines
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Standards
ANSI ICWM, ISO 9001:2015
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Replacement Wheel
Mfr. No. DUR-0620-08
Features
Kingpinless Raceway
Wheel Color
Black
Thread Guards
No
Includes
Complete Caster
Frame Finish
Zinc Plated
Number of Wheels
1
Caster Brake Type
No Brake
Swivel Raceway Type
Roller
Number of Mounting Holes
4
Wheel Core Material
Phenolic
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
1,200 lb
Compatible With
DUR-0620-08
Operating Temperature - Maximum
275 Degrees F
Operating Temperature - Minimum
-65 Degrees F
Operating Temperature Range
-65 Degrees to 275 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
