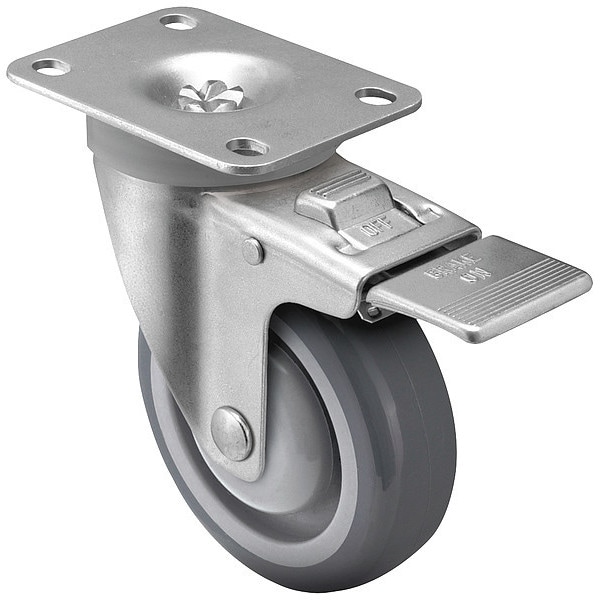

Swivel Plate Caster w/Total-Lock, Polyur, 4in, 300lb

product price: $15.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 5-3/16"
Wheel Dia. 4 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2" x 3-5/8"
Plate Size 2-1/2" x 3-5/8"
Mounting Height 5 3/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Crown
Caster Wheel/Tread Material Polyurethane
Load Rating 300 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Standards ANSI ICWM
Non-Marking Yes
Caster Brake Type Total Lock Brake
Plate Thickness 5/32"
Application Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Core Color Gray
Caster Temp. Range -40 Degrees to 175 Degrees F
Caster Plate Thickness 5/32"
Extended Lead No
Item Debris-Resistant Standard Plate Caster
Frame Material Steel
Caster Frame Material Steel
Caster Min. Temp. -40 Degrees F
Caster Product Group Swivel Caster with Total Lock
Wheel Color Gray
Caster Swivel Lock Type Total Lock
Thread Guards Yes
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Plate Caster Bolt Hole Pattern C
Caster Temp. Range Available Yes
Caster Core Material Polyolefin
Caster Plate Hole Pattern C
Includes Thread guards
Caster Raceway Double Ball
Caster Wheel Bearings Ball
Durometer 95 Shore A
Frame Finish Zinc Plated
Caster Max. Temp. 175 Degrees F
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Swivel Lock Type Total Lock
Load Rating Range 300 to 999 lb
Swivel Raceway Type Double Ball
Wheel/Tread Hardness 95 Shore A
Wheel Core Material Plastic
Tread Shape Standard
Wheel Bearing Type Precision Ball
Swivel Construction Kingpin
Includes Thread Guards Yes
Mounting Plate Bolt Hole Pattern C
Number of Mounting Holes 4
Wheel/Tread Hardness Rating Firm
Wheel/Tread Material Polyurethane
Wheel/Tread Color Gray

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 300 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
