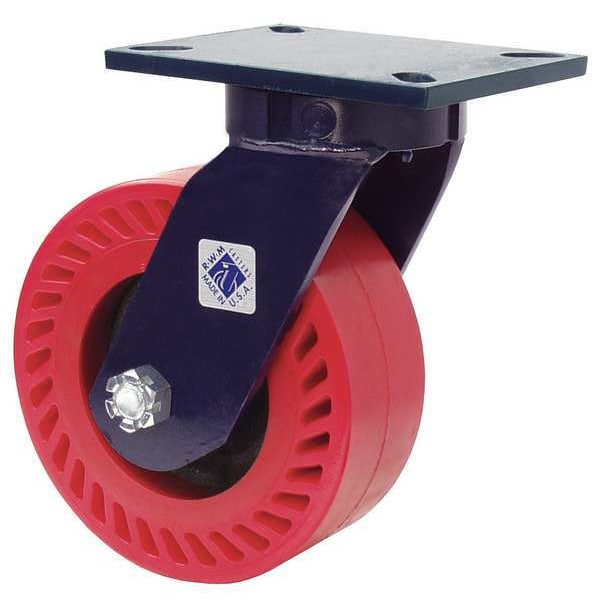

Kingpinless Swivel Plate Caster, 2500 lb.

  • Mfr # 76-DUR-0830-S

  • Zoro # G6876992

product price:  $246.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Swivel Radius
7 1/8 in
Application
Dollies, Platform Trucks, Utility Carts
Caster Plate Hole Pattern
A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
76-DUR-0830-S
Zoro #
G6876992
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
7 1/8 in
Wheel Dia.
8 in
Wheel Width
3 in
Overall Height
10-1/2"
Mounting Bolt Dia.
1/2 in
Mounting Height
10 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8in

Details

Caster Frame Material
Steel
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Application
Dollies, Platform Trucks, Utility Carts
Caster Plate Hole Pattern
A
Caster Brake Included
No
Load Rating
2500 lb
Item
Plate Caster
Thread Guards
No
Core Color
Black
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Frame Finish
Powder Coated
Caster Temp. Range Available
Yes
Extended Lead
Yes
Replacement Wheel
Mfr. No. DUR-0830-12
Includes
Complete Caster
Caster Sub-Type
Swivel
Features
Kingpinless Raceway
Number of Wheels
1
Wheel Color
Black
Standards
ANSI ICWM, ISO 9001:2015
Non-Marking
Yes
Caster Brake Type
No Brake
Swivel Construction
Kingpinless
Wheel Core Material
Phenolic
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Roller
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
2,500 lb
Compatible With
DUR-0830-12
Operating Temperature - Maximum
275 Degrees F
Operating Temperature Range
-65 Degrees to 275 Degrees F
Operating Temperature - Minimum
-65 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
