  11. Kingpinless Swivel Plate Caster, 2500 lb.

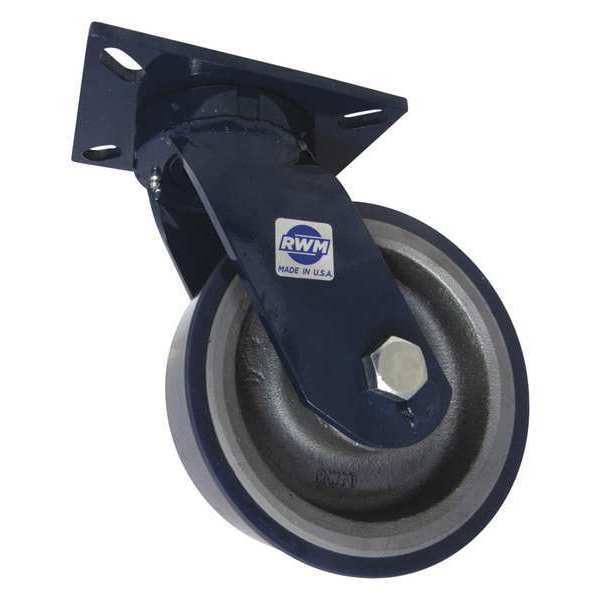

Rwm Kingpinless Swivel Plate Caster, 2500 lb. 76-UIR-0830-S - main

Kingpinless Swivel Plate Caster, 2500 lb.

  • Mfr # 76-UIR-0830-S

  • Zoro # G6792055

product price: $323.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
76-UIR-0830-S
Zoro #
G6792055
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
7 1/8 in
Overall Height
10-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2500 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Blue
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Wheel Color
Blue
Caster Brake Included
No
Standards
ANSI ICWM, ISO 9001:2015
Includes
Complete Caster
Extended Lead
Yes
Replacement Wheel
Mfr. No. UIR-0830-12
Frame Finish
Powder Coated
Thread Guards
No
Features
Kingpinless Raceway
Application
Dollies, Platform Trucks, Utility Carts
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel Core Material
Iron
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Roller
Compatible With
UIR-0830-12
Load Capacity - Maximum
2,500 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
