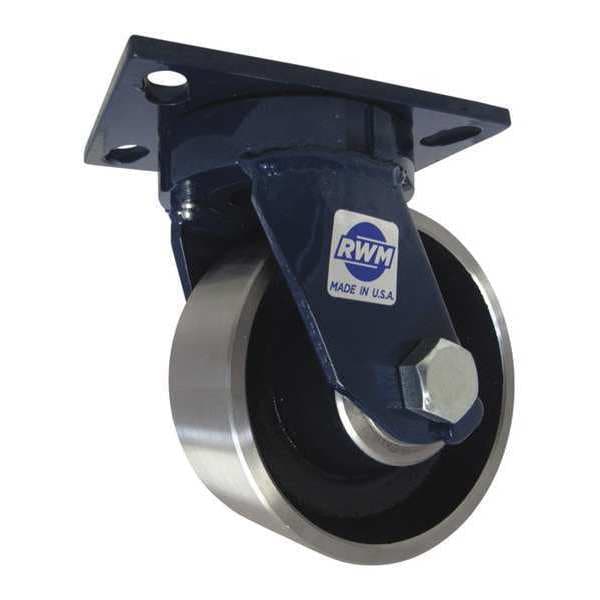

Kingpinless Swivel Plate Caster, 5000 lb.

  • Mfr # 75-FSR-0625-S

  • Zoro # G6753783

product price:  $288.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Replacement Wheel
Mfr. No. FSR-0625-12
Standards
ANSI ICWM, ISO 9001:2015
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
75-FSR-0625-S
Zoro #
G6753783
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 1/2 in
Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2"
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16in

Details

Caster Frame Material
Steel
Replacement Wheel
Mfr. No. FSR-0625-12
Standards
ANSI ICWM, ISO 9001:2015
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Wheel Color
Silver
Application
Tow Lines
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Item
Plate Caster
Non-Marking
Yes
Core Color
Blue
Includes
Complete Caster
Caster Brake Included
No
Caster Sub-Type
Swivel
Frame Finish
Powder Coated
Features
Kingpinless Raceway
Extended Lead
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Number of Wheels
1
Load Rating
5000 lb
Thread Guards
No
Caster Brake Type
No Brake
Tread Shape
Standard
Swivel Construction
Kingpinless
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Extra Hard
Swivel Raceway Type
Roller
Load Rating Range
3000 to 5999 lb
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Load Capacity - Maximum
5,000 lb
Compatible With
FSR-0625-12
Operating Temperature - Maximum
350 Degrees F
Operating Temperature Range
-50 Degrees to 350 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Caster Mounting Type
Plate

Description

Swivel, Plate Caster, Load Rating 5000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 1/2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
