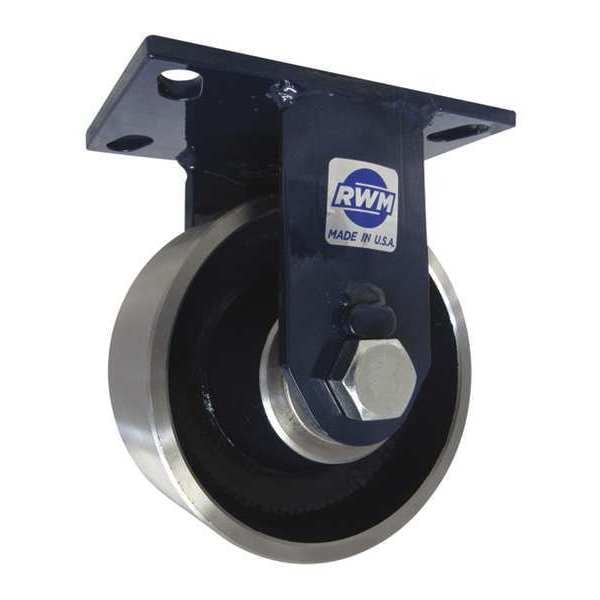

Rigid Plate Caster, Forged Steel, 5000 lb.

Rwm Rigid Plate Caster, Forged Steel, 5000 lb. 75-FSR-0625-R
Hover or click to zoom Tap to zoom
$220.17
  • Caster Brake Included: No
  • Item: Kingpinless Plate Caster
  • Caster Load Rating Range: Heavy-Duty
See full product details
This item ships free.
Total: $220.17

Rwm #75-FSR-0625-R Specifications

  • Caster Brake Included: No
  • Item: Kingpinless Plate Caster
  • Caster Sub-Type: Rigid
  • Caster Load Rating Range: Heavy-Duty
  • Caster Product Group: Rigid Caster
  • Caster Wheel Shape: Standard
  • Load Rating: 5000 lb
  • Wheel Dia.: 6 in
  • Caster Wheel/Tread Material: Forged Steel
  • Wheel Width: 2 1/2 in
  • Wheel/Tread Material: Steel
  • Overall Height: 7-1/2"
  • Wheel/Tread Hardness Rating: Extra Hard
  • Wheel Bearing Type: Roller
  • Mounting Height: 7 1/2 in
  • Mounting Plate Size: 4 1/2 in x 6 1/2 in
  • Mounting Plate Bolt Hole Pattern: A
  • Inside Bolt Hole Spacing: 2-7/16 in x 4-15/16 in
  • Outside Bolt Hole Spacing: 3-3/8 in x 5-1/4 in
  • Mounting Bolt Dia.: 1/2 in
  • Number of Mounting Holes: 4
  • Caster Brake Type: No Brake Included
  • Swivel Lock Type: No Lock Included
  • Non-Marking: Yes
  • Number of Wheels: 1
  • Frame Finish: Blue Powder Coat
  • Caster Frame Material: Steel
  • Wheel Core Material: Steel
  • Core Color: Blue
  • Application: Tow Lines, Shock Load Applications and Abusive Conditions in Ship Building, Automotive, Metal Fabricating, and Air Cargo Support Equipment
  • Features: Kingpinless Raceway
  • Standards: ICWM, ISO 9001:2015
  • Includes: Complete Caster
  • Caster Min. Temp.: -50 Degrees F
  • Replacement Wheel: Mfr. No. FSR-0625-12
  • Caster Temp. Range: -50 Degrees to 350 Degrees F
  • Plate Size: 4-1/2" x 6-1/2"
  • Caster Raceway: Roller
  • Thread Guards: No
  • Wheel Color: Silver
  • Caster Core Material: Steel
  • Extended Lead: No
  • Caster Wheel Bearings: Roller
  • Plate Caster Bolt Hole Pattern: B
  • Caster Plate Size: 4-1/2" x 6-1/2"
  • Caster Temp. Range Available: Yes
  • Caster Plate Thickness: 5/16"
  • Caster Plate Hole Pattern: B
  • Plate Thickness: 5/16"
  • Frame Material: Steel
  • Caster Max. Temp.: 350 Degrees F
  • Caster Swivel Lock Type: No Lock Included
  • Swivel Raceway Type: Roller
  • Load Rating Range: 3000 to 5999 lb
  • Includes Thread Guards: No
  • Tread Shape: Standard
  • Wheel/Tread Color: Silver
  • Country of Origin (subject to change): United States

Description

Rigid, Kingpinless Plate Caster, Load Rating 5000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 1/2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
