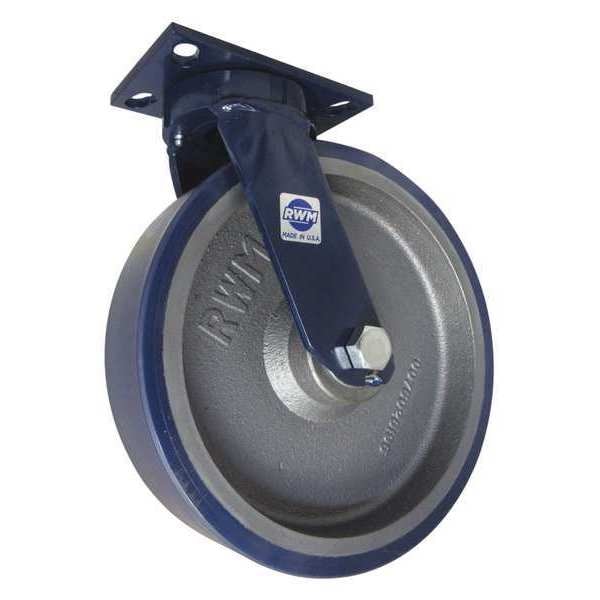

Rwm Kngpls Plt Cstr, Swl, Poly, 12", 3400 lb, A 75-UIR-1230-S - main

Kngpls Plt Cstr, Swl, Poly, 12", 3400 lb, A

  • Mfr # 75-UIR-1230-S

  • Zoro # G7508719

product price:  $429.99
/ea
Free Shipping & Returns

Key Features

Core Color
Gray
Frame Finish
Powder Coated
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Load Rating
3400 lb
Caster Temp. Range Available
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
75-UIR-1230-S
Zoro #
G7508719
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Swivel Radius
2 in
Overall Height
13-1/2in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
12 in
Mounting Height
13 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16in

Details

Core Color
Gray
Frame Finish
Powder Coated
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Load Rating
3400 lb
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. UIR-1230-12
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Non-Marking
Yes
Extended Lead
No
Caster Sub-Type
Swivel
Number of Wheels
1
Wheel Color
Blue
Item
Plate Caster
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Complete Caster
Caster Brake Included
No
Caster Frame Material
Steel
Standards
ANSI ICWM, ISO 9001
Thread Guards
No
Caster Brake Type
No Brake
Number of Mounting Holes
4
Swivel Construction
Kingpinless
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Roller
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Load Rating Range
3000 to 5999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Load Capacity - Maximum
3,400 lb
Wheel Hardness Rating
92 Shore A
Compatible With
UIR-1230-12
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 3400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
