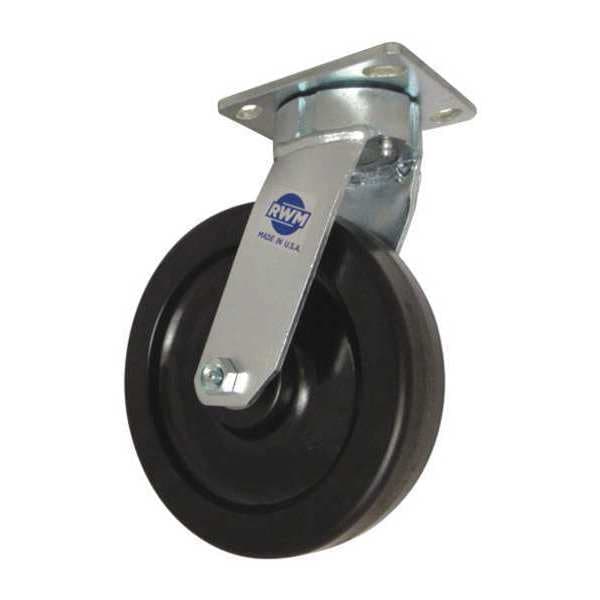

Kngpls Plt Cstr, Swvl, Phnc, 6", 1400 lb, D

  • Mfr # 65-DUR-0820-S

  • Zoro # G7508411

product price:
$
91.89
/ea

Key Features

Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. DUR-0820-08
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Complete Caster
Wheel Dia.
8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-DUR-0820-S
Zoro #
G7508411
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Overall Height
10-1/8"
Mounting Bolt Dia.
3/8 in
Swivel Radius
2 in
Wheel Width
2 in
Mounting Height
10 1/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Caster Plate Hole Pattern
B
Item
Plate Caster
Replacement Wheel
Mfr. No. DUR-0820-08
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Complete Caster
Frame Finish
Zinc Plated
Non-Marking
Yes
Caster Frame Material
Steel
Thread Guards
No
Caster Sub-Type
Swivel
Caster Brake Included
No
Wheel Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM, ISO 9001
Extended Lead
No
Core Color
Black
Load Rating
1400 lb
Number of Wheels
1
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Brake Type
No Brake
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Phenolic
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpinless
Includes Thread Guards
No
Wheel Bearing Type
Roller
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Hardness Rating
90 Shore D
Compatible With
DUR-0820-08
Load Capacity - Maximum
1,400 lb
Operating Temperature Range
-40 Degrees to 275 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
275 Degrees F

Description

Swivel, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
