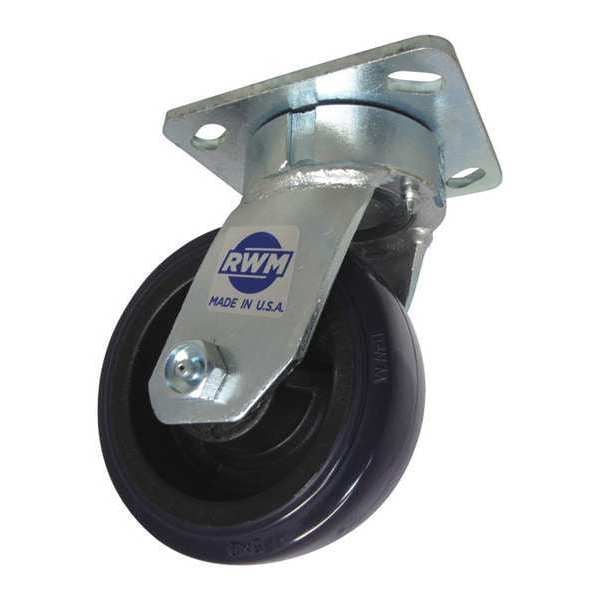

Rwm Kngpnls Plate Cstr, Swvl, Poly, 5", 750 lb 65-UPC-0520-S - main

Kngpnls Plate Cstr, Swvl, Poly, 5", 750 lb

  • Mfr # 65-UPC-0520-S

  • Zoro # G7275978

product price:  $83.99
/ea

Key Features

Caster Frame Material
Steel
Wheel Width
2 in
Core Color
Gray
Caster Brake Included
No
Extended Lead
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-UPC-0520-S
Zoro #
G7275978
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Overall Height
6-1/2in
Wheel Dia.
5 in
Swivel Radius
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Caster Frame Material
Steel
Core Color
Gray
Caster Brake Included
No
Extended Lead
No
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
B
Number of Wheels
1
Item
Plate Caster
Includes
Complete Caster
Thread Guards
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Color
Blue
Replacement Wheel
Mfr. No. UPC-0520-08
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Non-Marking
Yes
Load Rating
750 lb
Standards
ANSI ICWM, ISO 9001
Caster Brake Type
No Brake
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Wheel Bearing Type
Plain
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Wheel Core Material
Polyolefin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Compatible With
UPC-0520-08
Load Capacity - Maximum
750 lb
Wheel Hardness Rating
92 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
