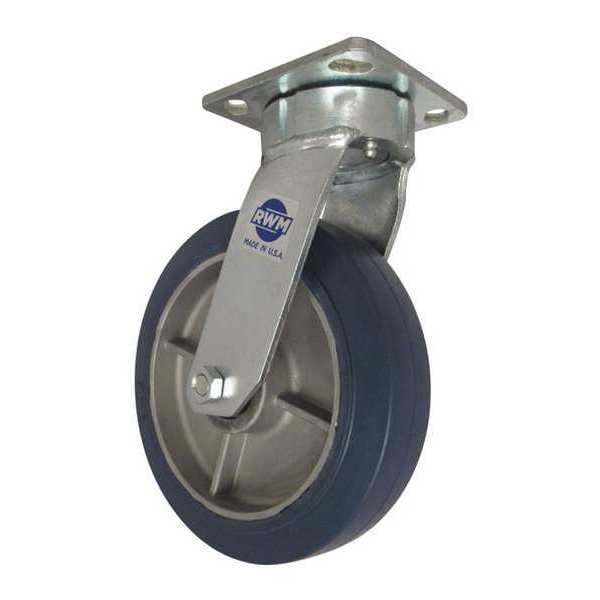

Kngpnls Plte Cstr, Swvl, Rbr, 6", 615 lb.

  • Mfr # 65-RAB-0620-S-EHT

  • Zoro # G7466877

product price:
$
109.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Number of Wheels
1
Wheel Color
Blue
Swivel Radius
2 in
Standards
ANSI ICWM, ISO 9001
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-RAB-0620-S-EHT
Zoro #
G7466877
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
2 in
Wheel Width
2 in
Overall Height
7-1/2"
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
1/4in

Details

Extended Lead
No
Number of Wheels
1
Wheel Color
Blue
Standards
ANSI ICWM, ISO 9001
Caster Brake Included
No
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. RAB-0620-08-EHT
Core Color
Silver
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Includes
Complete Caster
Caster Plate Hole Pattern
B
Load Rating
615 lb
Item
Plate Caster
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
No
Caster Brake Type
No Brake
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Wheel Core Material
Aluminum
Tread Shape
Standard
Wheel/Tread Material
Rubber
Wheel/Tread Color
Blue
Load Capacity - Maximum
615 lb
Wheel Hardness Rating
75 Shore A
Compatible With
RAB-0620-08-EHT
Operating Temperature Range
-30 Degrees to 140 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
140 Degrees F
Caster Mounting Type
Plate

Description

Swivel, Plate Caster, Load Rating 615 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
