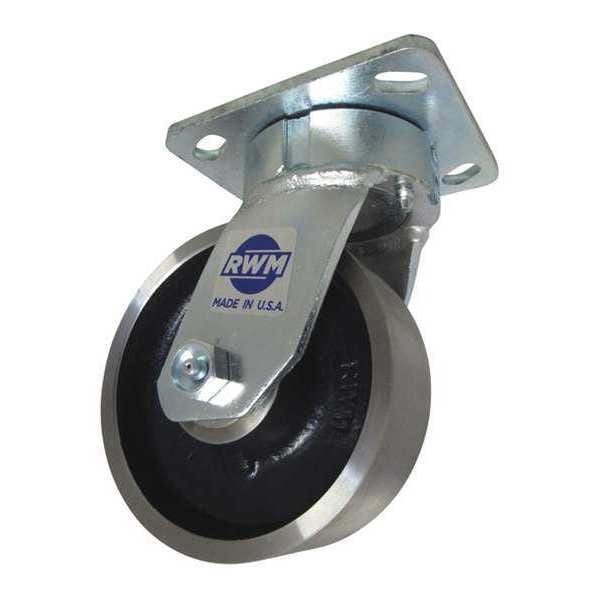

Rwm Kngpnlss Swvl Cstr, Frged Steel, 5", 1500lb 65-FSR-0520-S - main

Kngpnlss Swvl Cstr, Frged Steel, 5", 1500lb

  • Mfr # 65-FSR-0520-S

  • Zoro # G7508299

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Blue
Caster Brake Included
No
Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-FSR-0520-S
Zoro #
G7508299
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 in
Swivel Radius
2 in
Wheel Width
2 in
Overall Height
6-1/2in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
1/4in

Details

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Blue
Caster Brake Included
No
Caster Sub-Type
Swivel
Extended Lead
No
Replacement Wheel
Mfr. No. FSR-0520-08
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Complete Caster
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Load Rating
1500 lb
Wheel Color
Silver
Frame Finish
Zinc Plated
Item
Plate Caster
Caster Frame Material
Steel
Thread Guards
No
Caster Temp. Range Available
Yes
Non-Marking
Yes
Number of Wheels
1
Caster Plate Hole Pattern
B
Standards
ANSI ICWM, ISO 9001
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Extra Hard
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Wheel Core Material
Steel
Swivel Construction
Kingpinless
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Load Capacity - Maximum
1,500 lb
Compatible With
FSR-0520-08
Wheel Hardness Rating
179 BHN
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
350 Degrees F
Operating Temperature Range
-40 Degrees to 350 Degrees F

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
