  6. Kngpnlss Swvl Cstr, Frged Steel, 8", 5500lb

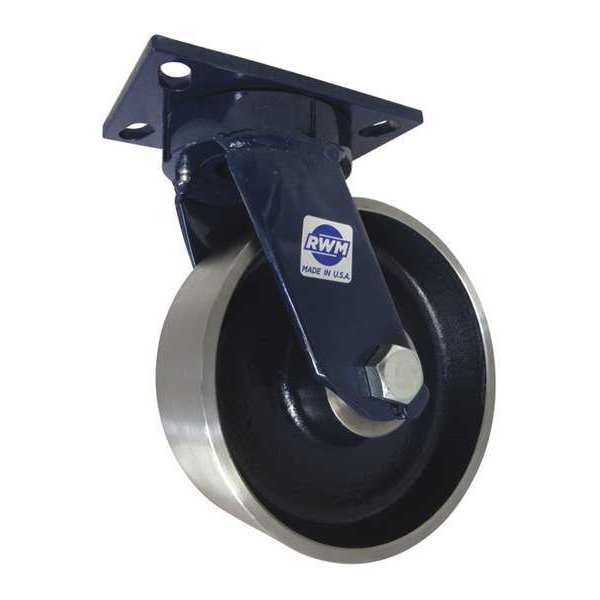

Rwm Kngpnlss Swvl Cstr, Frged Steel, 8", 5500lb 75-FSR-0830-S - main

Kngpnlss Swvl Cstr, Frged Steel, 8", 5500lb

  • Mfr # 75-FSR-0830-S

  • Zoro # G7508755

product price:  $440.99
/ea
Free Shipping & Returns

Key Features

Wheel Color
Silver
Includes
Complete Caster
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Swivel Radius
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
75-FSR-0830-S
Zoro #
G7508755
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
2 in
Overall Height
10-1/8in
Wheel Width
3 in
Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
10 1/8 in
Mounting Plate Thickness
5/16in

Details

Wheel Color
Silver
Includes
Complete Caster
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Frame Material
Steel
Extended Lead
No
Number of Wheels
1
Caster Sub-Type
Swivel
Item
Plate Caster
Caster Plate Hole Pattern
A
Frame Finish
Powder Coated
Standards
ANSI ICWM, ISO 9001
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Thread Guards
No
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Core Color
Blue
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. FSR-0830-12
Load Rating
5500 lb
Caster Brake Type
No Brake
Load Rating Range
3000 to 5999 lb
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Steel
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Load Capacity - Maximum
5,500 lb
Compatible With
FSR-0830-12
Wheel Hardness Rating
179 BHN
Operating Temperature Range
-50 Degrees to 800 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 5500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
