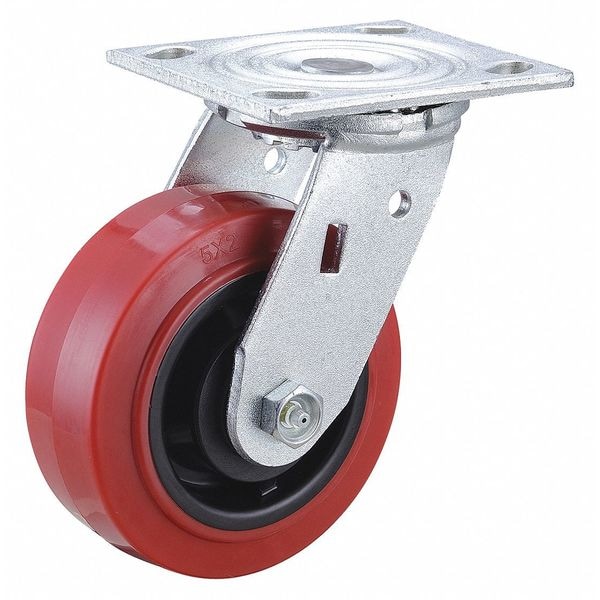

Zoro Select Plate Caster, 750 lbs Load Rating, Swivel 400K50 - main

Plate Caster, 750 lbs Load Rating, Swivel

  • Mfr # 400K50

  • Zoro # G3900080

product price:  $20.95
/ea

Key Features

Stem Dia.
No Stem
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Caster Plate Hole Pattern
B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
400K50
Zoro #
G3900080
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
6-1/2in
Wheel Dia.
5 in
Wheel Width
2 in
Swivel Radius
4 1/4 in
Mounting Bolt Dia.
3/8 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
7/32in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Caster Plate Hole Pattern
B
Thread Guards
No
Core Color
Black
Frame Finish
Zinc Plated
Wheel Color
Red
Caster Temp. Range Available
Yes
Replacement Wheel
1ULR8
Non-Marking
Yes
Caster Frame Material
Steel
Load Rating
750 lb
Caster Brake Included
No
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Stem Type
No Stem/Plate Included
Application
General Purpose
Caster Brake Type
No Brake
System of Measurement
Inch
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Load Rating Range
300 to 999 lb
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel Core Material
Polyolefin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Load Capacity - Maximum
750 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
