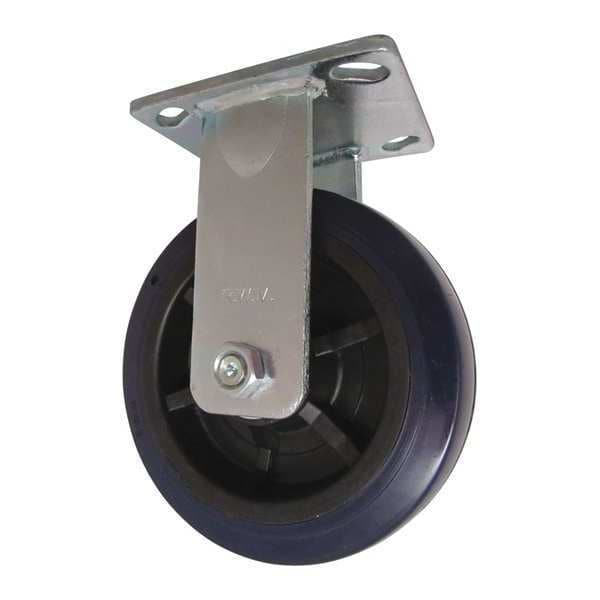

Rwm Plate Castr, Rgd, Polyurethane, 6", 900 lb 65-UPC-0620-R - main

Plate Castr, Rgd, Polyurethane, 6", 900 lb

  • Mfr # 65-UPC-0620-R

  • Zoro # G7276039

product price:  $31.99
/ea

Key Features

Wheel Color
Blue
Number of Wheels
1
Overall Height
7-1/2in
Standards
ANSI ICWM, ISO 9001
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
65-UPC-0620-R
Zoro #
G7276039
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/2in
Wheel Width
2 in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Wheel Color
Blue
Number of Wheels
1
Standards
ANSI ICWM, ISO 9001
Core Color
Gray
Item
Plate Caster
Includes
Complete Caster
Replacement Wheel
Mfr. No. UPC-0620-08
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Frame Material
Steel
Load Rating
900 lb
Non-Marking
Yes
Thread Guards
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Caster Sub-Type
Rigid
Extended Lead
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel/Tread Hardness Rating
Firm
Load Rating Range
300 to 999 lb
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Tread Shape
Standard
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Compatible With
UPC-0620-08
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
900 lb
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
