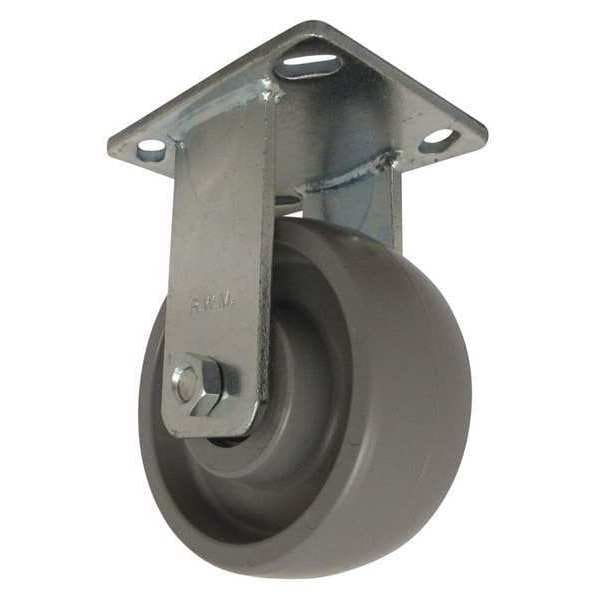

Rigid Plate Caster, Nylon, 5", 1200 lb.

  • Mfr # 65-GTB-0520-R
  • Zoro # G7508396
product price:
$
55.99
/ea

Key Features

Caster Temp. Range Available
Yes
Caster Brake Included
No
Wheel Color
Gray
Core Color
Gray
Overall Height
6-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65-GTB-0520-R
Zoro #
G7508396
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
6-1/2"
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
1/4in

Details

Caster Temp. Range Available
Yes
Caster Brake Included
No
Wheel Color
Gray
Core Color
Gray
Thread Guards
No
Replacement Wheel
Mfr. No. GTB-0520-08
Standards
ANSI ICWM, ISO 9001
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
1200 lb
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Item
Plate Caster
Extended Lead
No
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Non-Marking
Yes
Caster Sub-Type
Rigid
Includes
Complete Caster
Number of Wheels
1
Caster Plate Hole Pattern
B
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel Core Material
Nylon
Tread Shape
Standard
Load Rating Range
1000 to 2999 lb
Caster Brake Type
No Brake
Wheel/Tread Material
Elastomer
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Compatible With
GTB-0520-08
Wheel Hardness Rating
75 Shore D
Load Capacity - Maximum
1,200 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 275 Degrees F
Operating Temperature - Maximum
275 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Elastomer, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
