  6. Rigid Plate Caster, Polyurethane, 1200 lb.

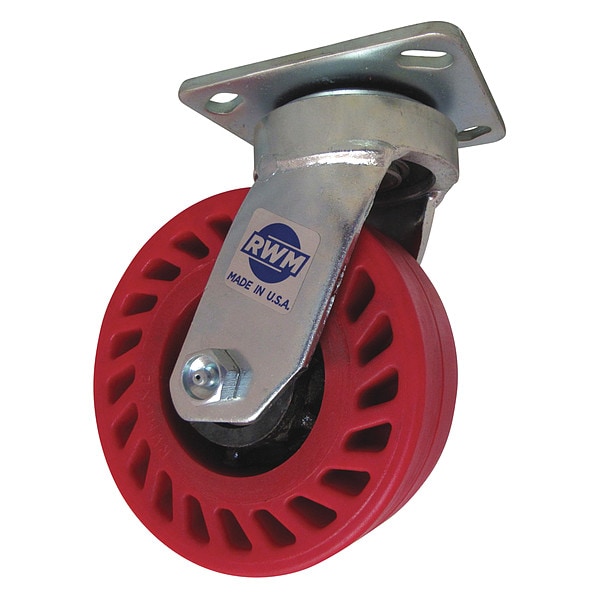

Rwm Rigid Plate Caster, Polyurethane, 1200 lb. 48-UOB-0820-R - main

Rigid Plate Caster, Polyurethane, 1200 lb.

  • Mfr # 48-UOB-0820-R

  • Zoro # G6421362

product price:  $180.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Includes
Complete Caster
Non-Marking
Yes
Wheel Color
Red
Caster Plate Hole Pattern
B
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
48-UOB-0820-R
Zoro #
G6421362
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Overall Height
9-1/2in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Caster Sub-Type
Rigid
Includes
Complete Caster
Non-Marking
Yes
Wheel Color
Red
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Extended Lead
No
Thread Guards
No
Item
Plate Caster
Features
Maintenance Free
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Core Color
Black
Load Rating
1200 lb
Caster Brake Included
No
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. UOB-0820-08
Frame Finish
Zinc Plated
Wheel Core Material
Iron
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
1,200 lb
Compatible With
UOB-0820-08
Caster Features
Maintenance Free
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
