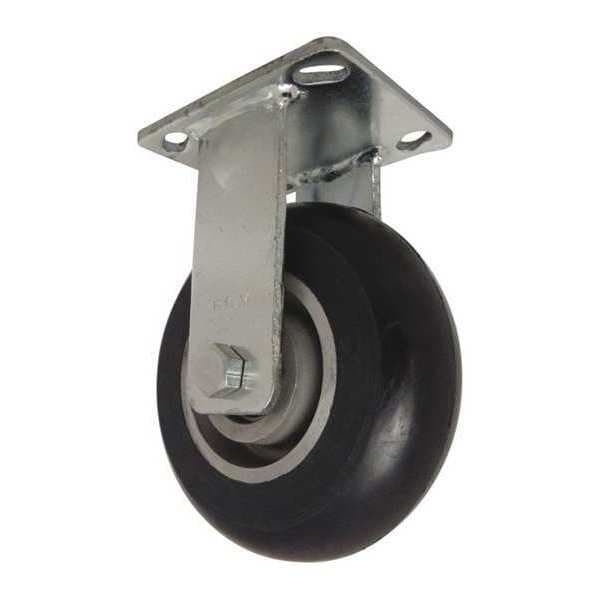

Rwm Rigid Plate Caster, Polyurethane, 1230 lb. 65-UAB-0621-R - main

Rigid Plate Caster, Polyurethane, 1230 lb.

  • Mfr # 65-UAB-0621-R

  • Zoro # G7508667

product price:  $71.39
/ea

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Complete Caster
Standards
ANSI ICWM, ISO 9001
Wheel Dia.
6 in
Inside Bolt Hole Spacing
2-5/8 in x 3 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
65-UAB-0621-R
Zoro #
G7508667
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Overall Height
7-1/2in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Complete Caster
Standards
ANSI ICWM, ISO 9001
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Brake Included
No
Load Rating
1230 lb
Caster Plate Hole Pattern
B
Number of Wheels
1
Non-Marking
Yes
Wheel Color
Blue
Extended Lead
No
Frame Finish
Zinc Plated
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Core Color
Silver
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Replacement Wheel
Mfr. No. UAB-0621-08
Item
Plate Caster
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Load Rating Range
1000 to 2999 lb
Wheel Bearing Type
Ball
Tread Shape
Donut
Includes Thread Guards
No
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,230 lb
Compatible With
UAB-0621-08
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 1230 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
