1. Home
  2. Material Handling
  3. Casters & Wheels
  4. Casters
  5. Plate Casters
  6. Rigid Plate Caster, Polyurethane, 700 lb.

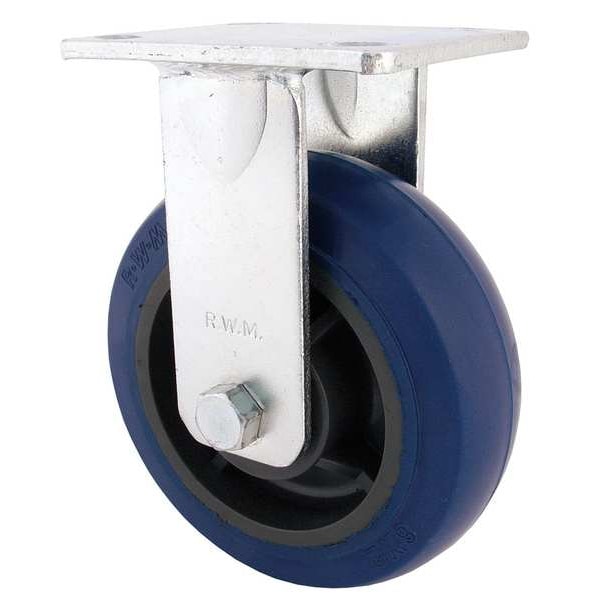

Rwm Rigid Plate Caster, Polyurethane, 700 lb. 65-UIR-0420-R - main

Rigid Plate Caster, Polyurethane, 700 lb.

  • Mfr # 65-UIR-0420-R

  • Zoro # G6468357

product price:  $31.99
/ea

Key Features

Load Rating
700 lb
Caster Brake Included
No
Caster Frame Material
Steel
Overall Height
5-5/8in
Extended Lead
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
65-UIR-0420-R
Zoro #
G6468357
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5-5/8in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
1/4in

Details

Load Rating
700 lb
Caster Brake Included
No
Caster Sub-Type
Rigid
Caster Frame Material
Steel
Extended Lead
No
Caster Plate Hole Pattern
B
Wheel Color
Blue
Features
Kingpinless Raceway
Application
Tow Lines
Non-Marking
Yes
Frame Finish
Zinc Plated
Includes
Complete Caster
Core Color
Black
Standards
ANSI ICWM, ISO 9001:2015
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Item
Plate Caster
Number of Wheels
1
Replacement Wheel
Mfr. No. UIR-0420-08
Thread Guards
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Bearing Type
Roller
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Roller
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel Core Material
Iron
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Compatible With
UIR-0420-08
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
700 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
