  11. Swivel Plate Caster, Nylon, 8", 1800 lb.

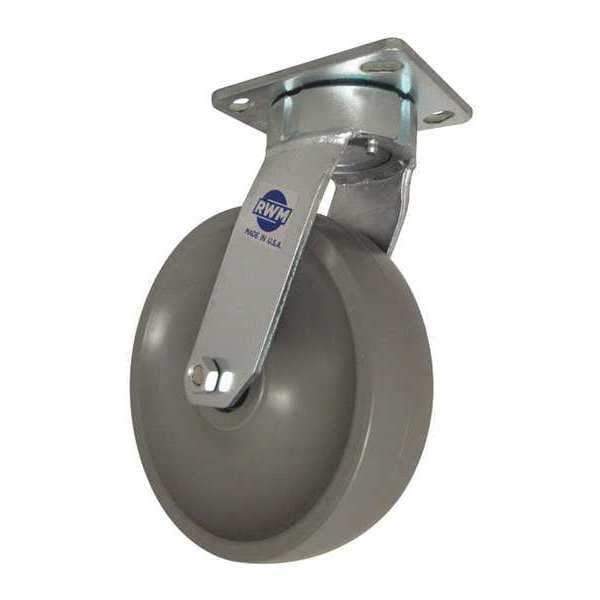

Rwm Swivel Plate Caster, Nylon, 8", 1800 lb. 65-GTB-0820-S-3.2 - main

Swivel Plate Caster, Nylon, 8", 1800 lb.

  • Mfr # 65-GTB-0820-S-3.2

  • Zoro # G7508317

product price: $142.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Elastomer
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
65-GTB-0820-S-3.2
Zoro #
G7508317
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
10 1/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
10-1/8in
Swivel Radius
2 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Elastomer
Caster Brake Type
No Brake
Load Rating
1800 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
75 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Gray
Includes
Complete Caster
Caster Brake Included
No
Frame Finish
Zinc Plated
Standards
ANSI ICWM, ISO 9001
Extended Lead
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Thread Guards
No
Replacement Wheel
Mfr. No. GTB-0820-08
Caster Temp. Range Available
Yes
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Load Capacity - Maximum
1,800 lb
Compatible With
GTB-0820-08
Operating Temperature Range
-40 Degrees to 275 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
275 Degrees F

Description

Swivel, Plate Caster, Load Rating 1800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Elastomer, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
