  6. Swivel Plate Caster, Polyurethane, 1500 lb

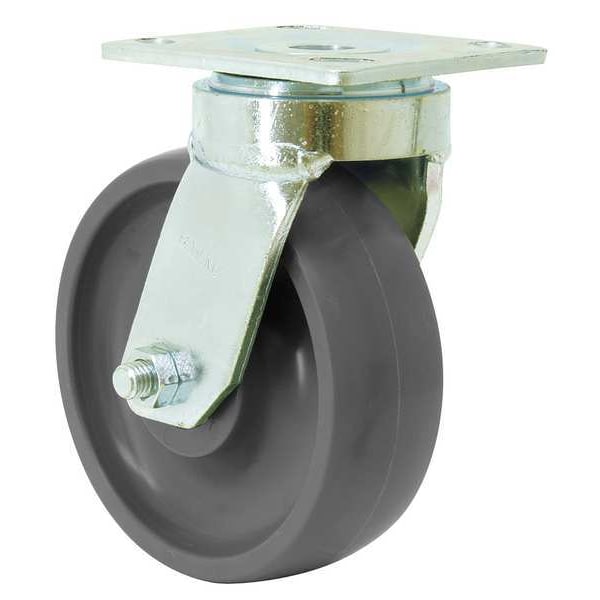

Rwm Swivel Plate Caster, Polyurethane, 1500 lb 48-UAB-0821-S - main

Swivel Plate Caster, Polyurethane, 1500 lb

  • Mfr # 48-UAB-0821-S

  • Zoro # G6471236

product price:  $152.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Replacement Wheel
Mfr. No. UAB-0821-08
Stem Dia.
No Stem
Overall Height
9-1/2in
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
48-UAB-0821-S
Zoro #
G6471236
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Overall Height
9-1/2in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Mounting Plate Thickness
1/4in

Details

Extended Lead
No
Replacement Wheel
Mfr. No. UAB-0821-08
Number of Wheels
1
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Core Color
Silver
Includes
Complete Caster
Non-Marking
Yes
Wheel Color
Blue
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Thread Guards
No
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
Features
Maintenance Free
Caster Brake Included
No
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Load Rating
1500 lb
Item
Plate Caster
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Aluminum
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Swivel Raceway Type
Double/Single Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Black
Compatible With
UAB-0821-08
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
92 Shore A
Caster Features
Maintenance Free
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
