Shop SAFETY TECHNOLOGY INTERNATIONAL

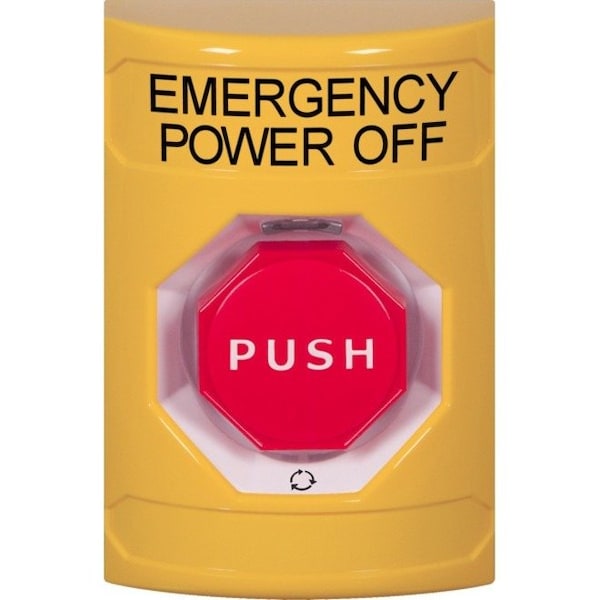

Emergency Power Off Push Button, 2-7/8" D

  • Mfr # SS2209PO-EN
  • Zoro # G5489331
product price:
$
62.45
/ea

Key Features

Push Button Style
Extended
Action
Maintained / Momentary
Maintained Action Release
Twist
Operator Illumination
Illuminated
Head Color
Red; Yellow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS2209PO-EN
Zoro #
G5489331
UPC #
662950500940
Country of Origin
United States

Dimensions

Button Dia.
1-1/2 in
Depth
2 7/8 in
Height
4 7/8 in
Width
3 1/4 in
Overall Height
4 7/8 in
Overall Depth
3 3/16 in
Overall Width
3 1/4 in
Button Diameter
1 1/2 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Maintained / Momentary
Maintained Action Release
Twist
Operator Illumination
Illuminated
Head Color
Red; Yellow
Head Material
Polycarbonate
Standards
UL and cUL Listed
Amps AC
10A @125 or 250V AC
Material
Polycarbonate
Color
Yellow
Event Audit Trail
No
Input Voltage
125/250V AC, 30V DC
Button Color
Red
Type
Turn-To-Reset
Finish
Painted
Rating
10A @ 125 or 250V AC, 6A @ 30V DC
Switch Action
Latching
Includes
(2) Form C Contacts
Cylinder
No
Operating Temp.
-40 Degrees to 250 Degrees F
Output
(2) SPDT Form C Contacts
For Use With
Access Control, Emergency Systems
Keypad
No
Supports Touchless Operation
No
Features
Turn-to-Reset, Illuminated Push Button
ADA Compliant
Yes
Supports Operation Type
Push-Button Operation
Event Audit Trail Included
No
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Switch Action Type
Push Button
Product Type
Emergency power off Push Button
Output Type
DPDT Relay
Compatible Product Type
Access Controls Systems
Shell Material
Polycarbonate
Wire Color
Yellow

Description

Emergency power off Push Button, Type Turn-To-Reset, Switch Action Latching, Material Polycarbonate, Finish Painted, Depth 2 7/8 in, Height 4 7/8 in, Width 3 1/4 in, Button Color Red, Color Yellow, Button Dia. 1-1/2 in, Rating 10A @ 125 or 250V AC, 6A @ 30V DC, Input Voltage 125/250V AC, 30V DC, Output (2) SPDT Form C Contacts, Amps AC 10A @ 125 or 250V AC, Operating Temp. -40 Degrees to 250 Degrees F, Event Audit Trail No, Keypad No, Cylinder No, Standards UL and cUL Listed
