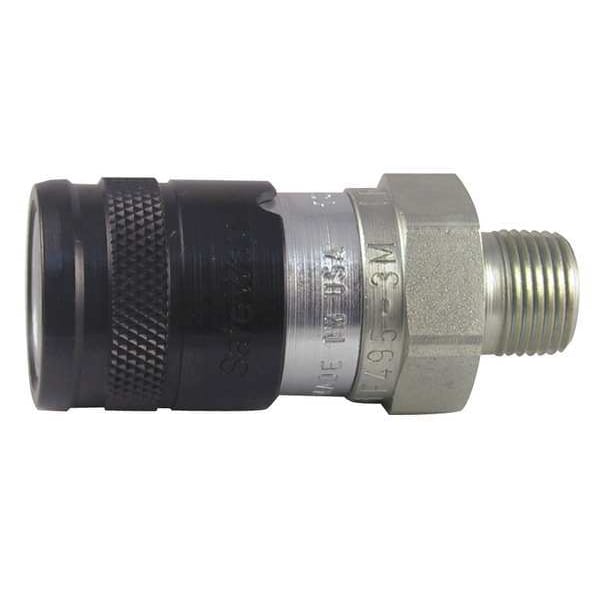

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size

  • Zoro #: G7071391
  • Mfr #: FF495-3M
$91.43
  • Item: Hydraulic Quick Connect Hose Coupling
  • Quick Coupler Type: Hydraulic Coupler Body
  • Coupler Interchange Type: FF49
See full product details
This item ships free.

Safeway Hydraulics #FF495-3M Specifications

  • Zoro #: G7071391
  • Mfr #: FF495-3M
  • Item: Hydraulic Quick Connect Hose Coupling
  • Quick Coupler Type: Hydraulic Coupler Body
  • Coupler Interchange Type: FF49
  • Connection Type: NPT
  • Coupler Thread Size: 3/8"-18
  • Coupler Body Size: 3/8"
  • Coupler Flow Rate: 10.0 gpm
  • Max. Pressure: 10,000 psi
  • Coupler Body Material: Carbon Steel
  • Sleeve Material: Steel
  • Series: FF49
  • Body Material: Steel
  • Coupling Locking Type: Push-to-Connect
  • Thread Size: 3/8"-18
  • Locking Mechanism: Retractable Sleeve with lock
  • Seal Material: Nitrile
  • Shut Off: Flat Face
  • Bearing Material: Stainless Steel
  • For Use With: Mfr. No. FF491-3
  • Coupler Connection Type: MNPT
  • Operating Temp. Range: -40 Degrees to 250 Degrees F
  • Standards: ANSI/NFPA T3.20.2.R2, ISO 16028 HTMA
  • Valve Design: Poppet
  • Overall Length: 2 3/4 in
  • Coupling Size: 3/8 in
  • Pull Ring Material: PTFE
  • Hose Fitting Gender: Male
  • Max. Outside Dia.: 1 1/4 in
  • Max. Flow Rate: 38 lpm
  • Max. Working Pressure @ 70 F: 10,000 psi
  • Fitting Type: MNPT
  • Includes Valve: Yes
  • Coupling Component: Socket
  • Includes Shut Off: Yes
  • Valve Type: Poppet
  • Includes Bearing: Yes
  • Finish/Coating: Plain
  • Maximum Vacuum: 27.4 in Hg
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Hydraulic Quick Connect Hose Coupling, Socket, FF49 Series, Steel, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 38 lpm
