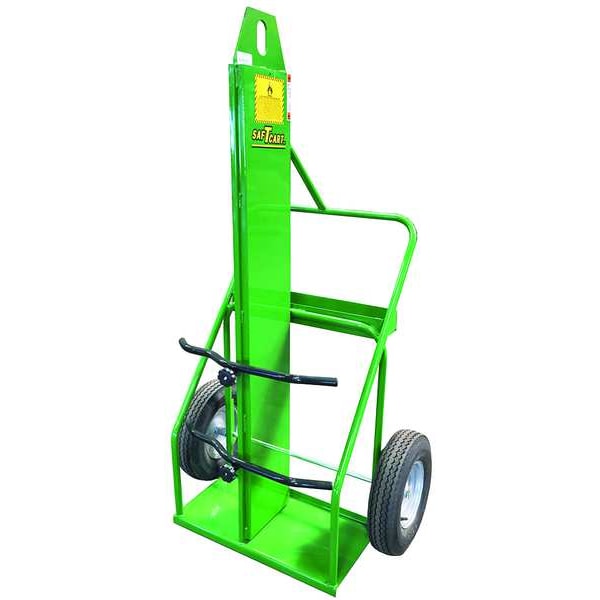

Saftcart Cylinder Cart, Powder Coated, Steel 871-16FW-LE - main

Cylinder Cart, Powder Coated, Steel

  • Mfr # 871-16FW-LE

  • Zoro # G2153527

product price: $817.99
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Key Features

Overall Height
44 in
Overall Width
34 in
Material
Steel
Color
Green
Load Capacity
1,000 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
871-16FW-LE
Zoro #
G2153527
UPC #
810649021027
Country of Origin
United States

Dimensions

Overall Height
44 in
Overall Width
34 in
Wheel Diameter
16 in
Overall Depth
12 in
Tool Tray Height
30 1/2 in
Max. Tank Dia. Oxygen
9 1/2 in
Tool Tray Width
22 1/4 in
Max. Tank Dia. Acetylene
12 1/2 in
Base Plate Dimensions
13 x 24 in
Wheel Width
4 in
Width
35"
Height
46 in
Handle Height
46 in
Overall Height - Cylinder Lowered
62 in
For Maximum Container Diameter
12 1/2 in
Axle-Mounted Wheel Width
4 in
Nose Plate Depth
13 in
Securing Mechanism Height
26 in
Nose Plate Thickness
3/32 in
Overall Height - Cylinder Raised
62 in
Nose Plate Width
24 in
Axle Dia.
3/4 in
Axle-Mounted Wheel Dia.
16 in
Deck Height
1/2 in
Firewall Thickness
1 in
Lifting Ring Inside Diameter
3 in
Overall HxWxD
44 in x 34 in x 12 in
Nose Plate WxD
13 in x 24 in
For Maximum Cylinder Diameter
12 1/2 in

Details

Material
Steel
Color
Green
Load Capacity
1,000 lb
Item
Firewall Welding Cylinder Hand Truck
Wheel Type
Pneumatic
Handle Type
Continuous Frame Flow-Back
Assembled
Yes
Wheel Bearings
Ball
Cylinder Capacity
2
Finish
Powder Coated
Hand Truck Handle Type
Continuous Frame Flow-Back
Includes
Firewall, Perma Clamps for Cylinders Securement
Standards
OSHA 1910.253
For Use With
Oxygen and Acetylene Cylinders
Weight
111 lb
Firewall Rating
1-hour
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel/Tread Material
Rubber
Frame Type
Rounded Back
Caster/Wheel Mounting Location
2-Wheel
Nose Plate Profile
Standard
Axle-Mounted Wheel Type
Pneumatic
Includes Firewall
Yes
Axle-Mounted Wheel Bearings
Ball Bearing
Cylinder Orientation
Side by Side
Compatible with Product Type
Oxygen and Acetylene Cylinders
Nose Plate Material
Steel
Features
Designed For Rough Terrain, Equipped With a Firewall and Lifting Eye
Includes Lift Ring
With Lift Ring
Nose Plate Type
Solid Straight
Hub Position
Offset
Non-Marking Axle-Mounted Wheels
No
Frame Material
Steel
Includes Lever Pushoff
Without Lever Pushoff
Includes Foot Assist
Without Foot Assist
For Surface Type
Concrete, Grass, Wood
Securing Mechanism
Perma Clamp
Brake Type
No Caster Brake
Caster/Wheel Configuration
(2) Axle-Mounted
Frame Finish
Powder Coated

Description

2, Overall Height 44 in, Overall Width 34 in, Overall Depth 12 in, Load Capacity 1,000 lb, Securing Mechanism Perma Clamp, Caster/Wheel Configuration (2) Axle-Mounted, Axle-Mounted Wheel Type Pneumatic, Axle-Mounted Wheel/Tread Material Rubber, Axle-Mounted Wheel Dia. 16 in, Handle Type Continuous Frame Flow-Back, Includes Firewall Yes, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring With Lift Ring, Frame Type Rounded Back
