  13. Lever Lockset, Mechanical, Passage, Grade 2

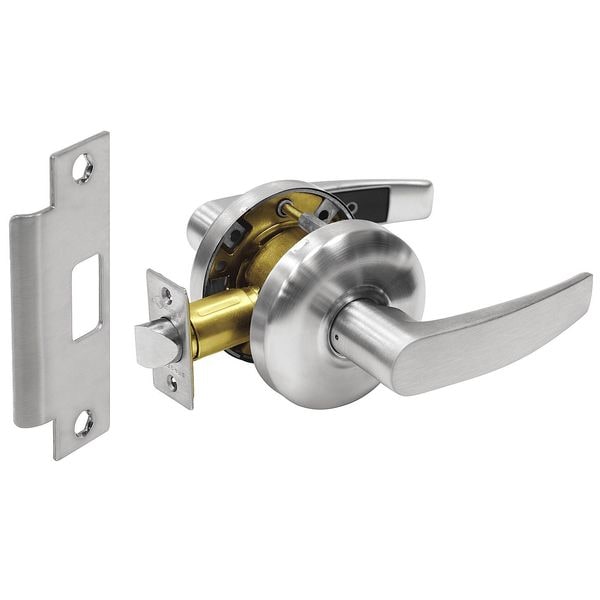

Sargent Lever Lockset, Mechanical, Passage, Grade 2 28-65U15 KB 26D - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # 28-65U15 KB 26D

  • Zoro # G4632923

product price: $164.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
28-65U15 KB 26D
Zoro #
G4632923
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Thickness
1/16 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Key Type
Not Keyed
Keyway Type
None
Location Type
Institutional
Lockset Function
Closet, Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6; 7
Series
6500
Style
6500 Curved
Finish
Satin Chrome
Mortise / Cylindrical
Cylindrical
Lockset Fire Rating
3 hr
Standards
ANSI/BHMA A156.2, Series 4000, Grade 2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed
Item
Door Lockset
Strike Type
Curved Lip
ADA Compliant
Yes
Handle Material
Brass, Cast Steel, Stainless Steel, Wrought
Lockset Finish
Satin Chrome
Ligature Resistant
No
Strike Dim.
4-7/8 in x 1-1/4 in
Lockset Performance Strength
Heavy Duty
Fire Rated
3 hr.
Keying
Keyed Different
Key Material
Nickel Silver
Number of Keys
2
Grade
2
Material
Wrought and Cast Steel, Brass, Stainless Steel
Type
Cylindrical
Function
Passage
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Visual Indicator Message
No Message
Case Material
Steel and Zinc
Hand Orientation
Non-Handed
Lockset Style
6500 Lever
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
Locking/Unlocking Access - Outside
Not Lockable
Locking/Unlocking Access - Inside
Not Lockable
Knob/Handle Material
Brass, Cast Steel, Stainless Steel
Lockset Type
Mechanical
Includes Core
Core Not Included
ANSI/BHMA Finish
Satin Chromium-Plated
Performance Grade
2
Trim Plate Shape
Round
ANSI Grade
2
Lockset Function ANSI Code
F75
Latch Bolt/Dead Bolt
Latch Bolt

Description

Lever Lockset, Cylindrical, Institutional, 6500 Series, Curved Style, Satin Chrome Finish, Function Passage, Grade 2, Material Wrought and Cast Steel, Brass, Stainless Steel, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Keying Different, Standards Certified ANSI A156.2 Series 4000 Grade 1, UL and CSA Listed, ADA, California Administrative Code Title 19 and 24
