  13. Lever Lockset, Mechanical, Privacy, Grade 1

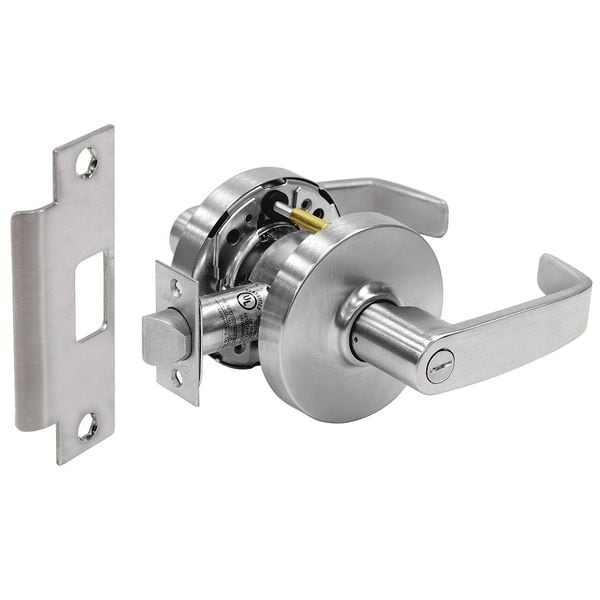

Sargent Lever Lockset, Mechanical, Privacy, Grade 1 28-10XU65 LL 26D - main

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # 28-10XU65 LL 26D

  • Zoro # G4597704

product price: $481.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial, Institutional, Offices, Schools/Universities, Hospitals, Manufacturing Facilities
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
28-10XU65 LL 26D
Zoro #
G4597704
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Strike Plate Lip Length
1 1/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
2 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial, Institutional, Offices, Schools/Universities, Hospitals, Manufacturing Facilities
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
10 Line
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Includes
Hardware
For Use With
ANSI 115.2 (161 Modified) Door Prep
Key Type
Not Keyed
Number of Pins
6; 7
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL 437, UL and cUL Listed
Handle Material
Brass, Bronze, Cast Steel, Wrought
Mortise / Cylindrical
Cylindrical
ADA Compliant
Yes
Lockset Handle Type
Lever
Lockset Fire Rating
3 hr
Lockset Grade
1
Strike Type
Curved Lip, T-Strike
Style
10 Line
Lockset Finish
Satin Chrome
Mortise/Cylindrical
Cylindrical
Ligature Resistant
No
Lockset Performance Strength
Heavy Duty
Keyway Type
Sargent LA
Features
Simple Cylinder Removal, Easy Change Outs
Number of Keys
2
Application
Commercial, Government, Hospitals, Manufacturing Facilities, Office, Schools
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Type
Cylindrical
Green Environmental Attribute
Applicable to LEED Criteria
Material
Wrought and Cast Steel, Brass, Bronze
Function
Privacy
Fire Rated
3 hr.
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
Visual Indicator Message
No Message
Case Material
Steel and Zinc
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
ANSI Grade
1
Ligature-Resistant
Not Ligature-Resistant
Lockset Type
Mechanical
Performance Grade
1
Lockset Style
10X Line
Locking/Unlocking Access - Inside
Push Button
Lockset Function ANSI Code
F76A
Trim Plate Shape
Round
Knob/Handle Material
Cast Zinc
Includes Core
Core Not Included
Latch Bolt/Dead Bolt
Latch Bolt
Hand Orientation
Non-Handed

Description

Lever, Heavy Duty, Lockset Function Privacy, Style Right Angle, Handle Material Wrought, Cast Steel, Brass, Bronze, Satin Chrome Finish, Strike Type Square Corner Full Lip Strike, Strike Dim. 4-7/8 In. x 1-1/4 In., Fire Rated 3 hr., Grade 1, Series 10 Line, Location Type Institutional, Backset 2-3/4 In., Required Door Thickness 1-3/4 In. to 2 In., For Use With ANSI 115.2 (161 Modifed) Door Prep
