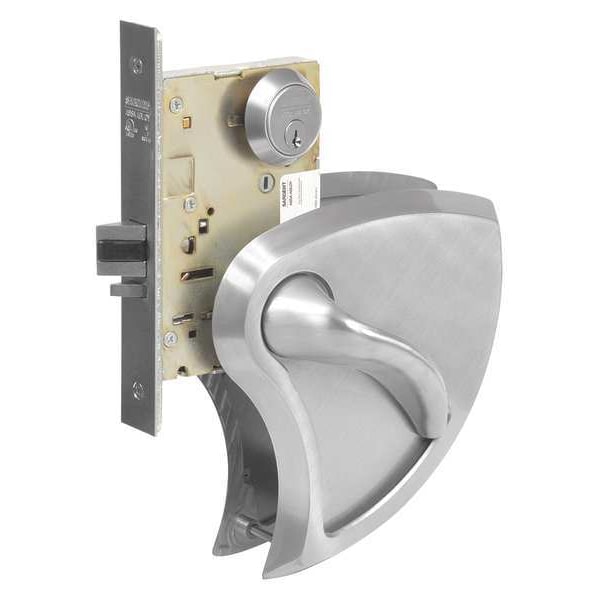

Lever Lockset, Mechanical, Storeroom

  • Mfr # SG-8204BHW-32D RH

  • Zoro # G2864298

product price:
$
1,730.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Closet, Storeroom
Lockset Grade
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SG-8204BHW-32D RH
Zoro #
G2864298
UPC #
-
Country of Origin
China

Dimensions

Required Door Thickness
1-3/4 in to 1-7/8 in
Door Thickness - Maximum
1 7/8 in
Strike Plate Width
1 1/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Closet, Storeroom
Lockset Grade
1
Style
8200 BHW
Lockset Finish
Dull Stainless Steel
Keyway Type
Sargent LA
Key Type
Keyed Different
Backset
2 3/4 in
Number of Keys
2
Strike Type
Curved Lip
Key Material
Nickel Silver
Includes
Anti-Microbial Coating, Microshield
Series
8200
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Mortise/Cylindrical
Mortise
For Use With
Hollow Metal and Wood Doors
Strike Dim.
4-7/8 in x 1-1/8 in
Ligature Resistant
Yes
Location Type
Healthcare, Institutional
Features
ADA Compliant, Handing RH
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.13, ANSI/SDI 250.13, ASTM E330, CAL FIRE, 3025-0006:0111, EPD
Item
Door Lockset
Finish
Dull Stainless Steel
Fire Rated
3 hr.
Grade
1
Keying
Keyed Different
Cylinder Core Type
Large Format Interchangeable Core Cylinder
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Declare
Visual Indicator Message
No Message
Function
Storeroom
Pins
6
Case Material
12 Gauge Wrought Steel, Zinc Dichromate Coating
Handle Type
Lever
ANSI/BHMA Finish
Satin Stainless Steel
Locking/Unlocking Access - Inside
Not Lockable
Lockset Style
8200 BHW
Lockset Type
Mechanical
UL Fire Rating
UL10C
Trim Plate Shape
Rectangular
Application
Multiple Family Residential, Institutional
Fire Rating
3 hr
Hand Orientation
Right-Handed
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Outside
Keyway
Performance Grade
1
Ligature-Resistant
Ligature-Resistant
Includes Core
Core Not Included
Lockset Function ANSI Code
F07
ANSI Grade
1

Description

Mortise Lock, Style Lever, Function Storeroom, Location Type Institutional, Healthcare, Trim Style BHW, Backset 2-3/4 In., Strike Type ANSI, Strike Dim. 4-7/8 In. x 1-1/8 In., 3 hr. Fire Rated, Series 8200, Case Material 12 Gauge Wrought Steel, Zinc Dichromate Coating, Dull Stainless Steel Finish, Case Size 5-31/32 In.H x 27/32 In.W x 4-3/32 In.D, Required Door Thickness 1-3/4 In. to 1-7/8 In., For Use With Hollow Metal and Wood Doors, Grade 1, Pins 6, Keying Keyed Random, Keyway Type LA
