  5. 80W LED HID Bulb, CCT Select, Type B, Ballast Bypass, EX39 Base, 277480V

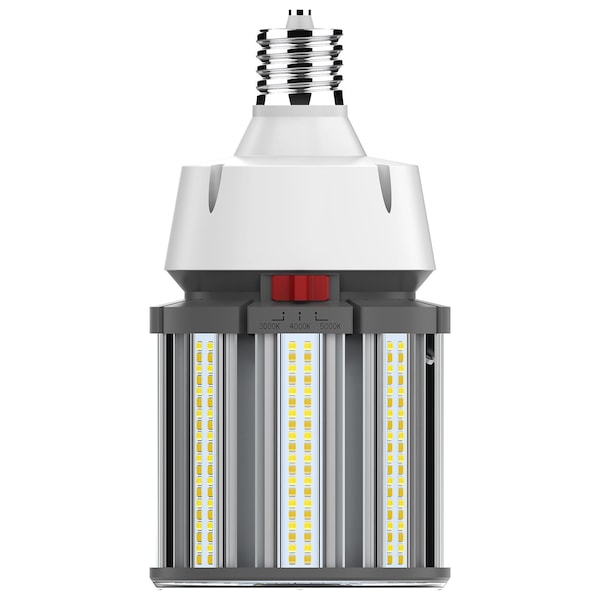

Satco 80W LED HID Bulb, CCT Select, Type B, Ballast Bypass, EX39 Base, 277480V S23167 - main

80W LED HID Bulb, CCT Select, Type B, Ballast Bypass, EX39 Base, 277480V

  • Mfr # S23167

  • Zoro # G407676546

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

Voltage
277V-480V
Bulb Base Type
Mogul Extended
Bulb Shape
Corncob
Max. Overall Bulb Length
9.88 in
Watts
80W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S23167
Zoro #
G407676546
UPC #
45923231674
Country of Origin
China

Dimensions

Max. Overall Bulb Length
9.88 in
Minimum Compartment Size
Length: 9.84 in. Width: 9.84 in.

Details

Voltage
277V-480V
Bulb Base Type
Mogul Extended
Bulb Shape
Corncob
Watts
80W
Item
Corncob
Material
Aluminum / Polycarbonate (PC)
Lumens
10400L/11200L/10800L
Dimmable
Yes-Dimmable
Power Factor
0.9
Burning Position
Base Up or Down
Operating Temp
-30C (-22F) to +45C (+113F)
Surge Protection
Built-in surge protection - 4KV
Lamp Filament
LED
Safety Listing
cULus - Classified; cRUus - Recognized Component
Beam Spread
300
Rated For Enclosed Fixture
Yes
HID Equiv
300W
Avg Rated Hours
50000
Lamp Ballast Type A/B/C
Type B
Location Rating
Damp
Amps
0.320A
Finish
White
IP Rating
IP64
Technology
LED
Color Temp
Warm to Cool White
CRI
80
Lamp Base
Mogul Extended
Enclosure Rating
Enclosed Rated Lamp
Indoor Outdoor
Indoor and Outdoor
Temperature (CCT)
3000K/4000K/5000K
Dimmable Function
ONLY Dimmable Via Sensor Port
Operating Frequency
50/60 Hz
Lens Material
Plastic
Housing Color
Dark Gray
Lens Finish
Clear

Description

Satco's S23167 80watt LED lamp is the lamp of choice for largescale applications Illuminate gymnasiums, warehouses, or any other venues with high ceilings requiring light output This CCT selectable lamp delivers 50,000 hours of clean, energysaving light
