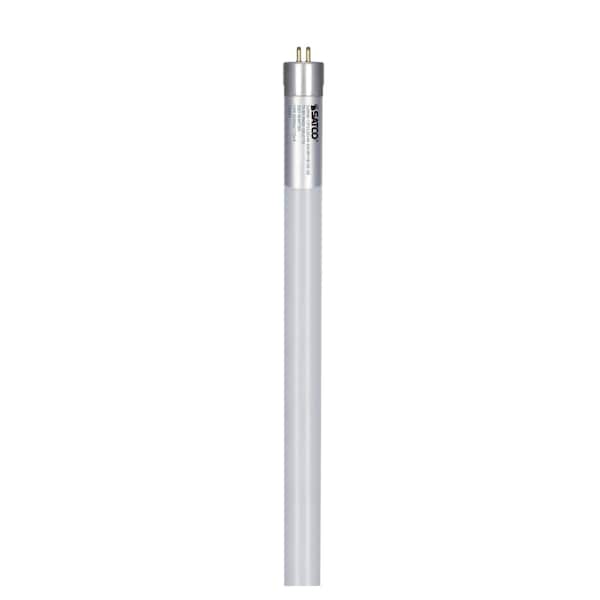

Bulb, LED, 13W, T5, Miniature Bi Pin, 3500K, Non-Dim

Mfr # S28690
Zoro # G308374312

12.95

Sold in multiples of 25 for $323.75

Key Features

Voltage

120-277V

Watts

13 W

Bulb Base Type

G5 Miniature Bi Pin

Bulb Shape

Bulb Housing

Glass

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: S28690
Zoro #: G308374312
UPC #: 45923286902
Country of Origin: China

Dimensions

Length: 48 in
Bulb Dia.: 0.83 in

Details

Voltage: 120-277V
Watts: 13 W
Bulb Base Type: G5 Miniature Bi Pin
Bulb Shape: T5
Bulb Housing: Glass
Color Temperature: 3500K
Dimmable: No
Lumens: 1600
Rated Life: 50,000 hr
Light Technology: LED
Bulb Finish: Frost
Type: Linear
Replaces: S8690
Bulb Beam Angle: 240 Degrees
Wattage Equivalency: 28W Fluorescent
Shatter-Resistant: Yes
Energy Star Compliant: No
For Enclosed Fixtures: Yes
Bulb Operating Temp. Range: -13 to 113°F
Color Rendering Index: 83
Light Color: Neutral White
Standards: DLC Approved, FCC Compliant, NSF Approved, cULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Total Harmonic Distortion: 0.2
Housing Color: White
Lens Material: Glass
IP Rating: IP20
Operating Frequency: 50/60 Hz
Power Factor: 0.9
Lamp Filament: LED
Lamp End Type: Single Ended, Double Ended
Ballast Bypass/Direct: Bypass
Color Selectable: No
Bulb Minimum Starting Temperature: -13 degrees fahrenheit
Incandescent Wattage Equivalency: 50 watts
Maximum Operating Temperature: 113 degrees fahrenheit
Amps: 0.108 to 0.047 A
UL 1993 Environmental Rating: Damp
Lamp Ballast Type: Type B

Description

13 Watt T5 LED - Miniature Bi-Pin Base - 3500K - 50000 Average Rated Hours - 1600 Lumens - 120-277 Volts - Type B - Ballast Bypass - Single or Double Ended Wiring
