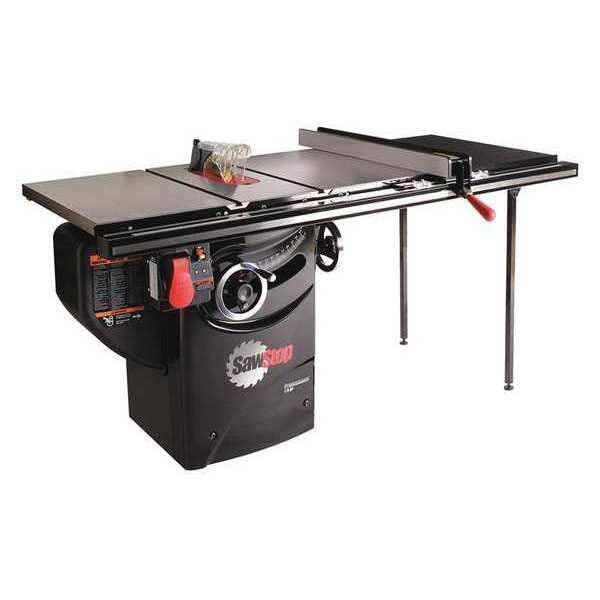

Corded Table Saw 10 in Blade Dia., 36 in

  • Mfr # PCS175-TGP236
  • Zoro # G3345076
product price:
$
3,713.99
/ea
Additional $345.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Blade Dia.
10 in
Max. Cut Width Right of Blade
36 in
Voltage
120 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Max. Cutting Depth @ 0 Deg.
3 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PCS175-TGP236
Zoro #
G3345076
UPC #
857766003338
Country of Origin
Taiwan, Province of China

Dimensions

Blade Dia.
10 in
Max. Cut Width Right of Blade
36 in
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Max. Cutting Depth @ 45 Deg.
2 1/4 in
Overall Width
69 1/8 in
Arbor Size
5/8 in
Depth of Cut @ 45 Deg.
2-1/4"
Overall Depth
33 in
Overall Height
34 in
Exhaust Port Size
4 in
Depth of Cut @ 90 Deg.
3-1/8"
Table Length
27 in
Max. Cut Width Left of Blade
12 in
Table Width
69 1/8 in
Table Width with Extension
69 1/8 in
Cord Length
9 ft
Cutting Depth at 0 Degrees - Maximum
3 1/8 in
Cutting Width Left of Blade - Maximum
12 in
Cutting Depth at 45 Degrees - Maximum
2 1/4 in
Cutting Width Right of Blade - Maximum
36 in
Blade Diameter
10 in

Details

Item
Table Saw
Voltage
120 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Current
14 A
Max. Blade Speed
4,000 RPM
Corded/Cordless
Corded
No Load RPM
4000
Table Front of Blade
10 1/4 in
Corded/Banded
Corded
Motor HP
1 3/4 hp
Hz
60 Hz
Phase
Single-Phase
Cutting Capacity Rip Right
36-1/2"
Table Surface w/Extension
67-3/4 in x 27 in
Cutting Capacity Rip Left
12"
Amps
14.0
Includes
Bare Tool
Blade Tilt
Left
Series
PCS
Automatic Blade Safety Retraction
Yes
Power Source
Corded
Table Saw Type
Cabinet
Variable Speed
No
Stand Type
Cabinet
Horsepower
1.75 hp
Arbor Shape
Round
Amps AC
14
Bevel Tilt Direction
Left
Blade Speed - Maximum
4,000 RPM
Speed Control
Single
Includes Automatic Blade Safety Retraction
Automatic Blade Safety Retraction Included
Bevel Angle - Maximum
45 Degrees
Frequency
60 Hz
Bevel Angle - Minimum
0 Degrees
Power Source - TS Only
Corded
Power Source - old
Corded

Description

Table Saw, Power Source Corded, Series PCS, Blade Dia. 10 in, Max. Blade Speed 4,000 RPM, Current 14 A, Horsepower 1.75 hp, Arbor Size 5/8 in, Arbor Shape Round, Bevel Angle Range 0 Degrees to 45 Degrees Left, Max. Cutting Depth @ 0 Deg. 3 1/8 in, Max. Cutting Depth @ 45 Deg. 2 1/4 in, Table Saw Type Cabinet, Stand Type Cabinet, Max. Cut Width Right of Blade 36 in, Max. Cut Width Left of Blade 12 in, Table Width 69 1/8 in, Table Width with Extension 69 1/8 in, Table Length 27 in

Restrictions

This item has been restricted from sale in the following states: AK, HI
