  9. Industrial Misting Fan 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM

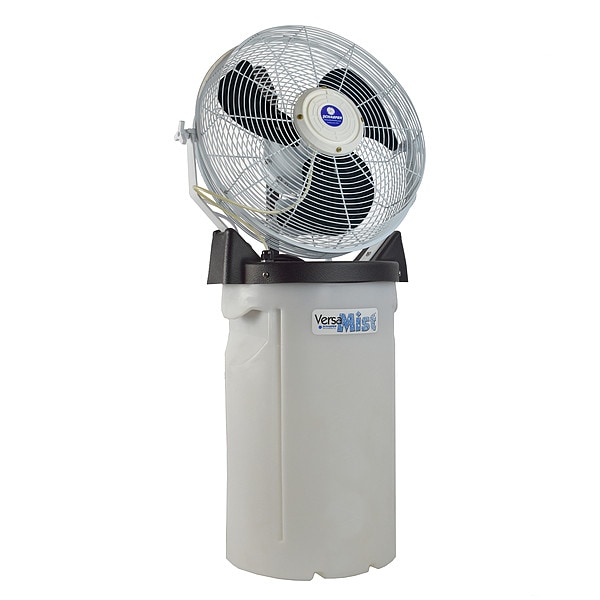

Schaefer Industrial Misting Fan 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM PVM18 - main

Industrial Misting Fan 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM

  • Mfr # PVM18

  • Zoro # G8530322

product price: $949.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
18 in
Oscillation
Non-Oscillating
Number of Speeds
3
Phase
1
Drive Type
Direct
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PVM18
Zoro #
G8530322
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
18 in
Height
42"
Max. Depth
15"
Width
24"
Shaft Dia.
1/2"
Outside Dia.
20"
Fan Cord Length
25 ft
Depth
15 in

Details

Oscillation
Non-Oscillating
Number of Speeds
3
Phase
1
Drive Type
Direct
Blade Material
Steel
Sound Level
60/52dBA
CFM High
2200
Mobile/Stationary
Stationary
Full Load Amps
1.45
Thermal Protection
Auto
Voltage
115VAC
CFM Low
1400
Environmental Applications
Industrial
Motor Insulation
Class A
Standards
UL507 Motor and OSHA Guard
Motor HP
1/10
Assembled
No
Application
Spot Cooling and People Cooling
NEMA Plug Configuration
5-15P with GFCI
Guard Material
Steel
Number of Conductors
3
Max. Ambient Temp.
107 Degrees F
Watts
130
Wire Guard Finish
White Powder Coated
CFM Medium
1800
Motor Enclosure
Totally Enclosed Air-Over
Hz
60
Housing Material
Steel
Requires
Assembly
Bearing Type
Sealed Ball
Motor RPM
1000/1400/1570
Item
Industrial Misting Fan
Fan Style
Misting
Fan Accessory Style
Misting
Includes
10 gal. Tank, 5 hr. Run Time, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs
Air Velocity @ 20 Ft.
190/270/310 fpm
Number of Blades
3
Fan Mounting Location
Pedestal
Motor Type
Permanent Split Capacitor
Frame Material
Steel
Air Flow
1400/1800/2200 CFM
Wheeled Base
Stationary
Assembly Required
Yes
Fan Housing Material
Steel
Amps
1.5/1.3/1
RPM
1000/1400/1570
Material
Steel

Description

Misting Air Circulator, Blade Dia. 18 In., Stationary, Non-Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 3000, CFM Low 2000, Air Velocity (FPM) @ 20 Ft. 190/270/310, Motor HP 1/10, Motor RPM 1000/1400/1570, Operating Amps 1.5/1.3/1, Mounting Location Floor, Commercial, Assembled Unassembled, CFM Medium 2600, Outside Dia. 20 In., Includes 10 gal. Tank, 5 hr. Run Time, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs
