  9. Mobile Misting Air Circulator 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM

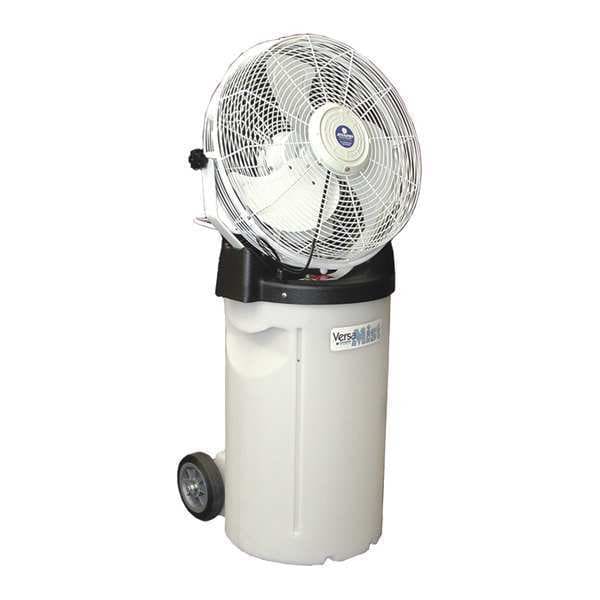

Schaefer Mobile Misting Air Circulator 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM PVM18C - main

Mobile Misting Air Circulator 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM

  • Mfr # PVM18C

  • Zoro # G8530331

product price: $989.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
18 in
Oscillation
Non-Oscillating
Number of Speeds
3
Phase
1
Drive Type
Direct
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PVM18C
Zoro #
G8530331
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
18 in
Max. Depth
26-1/2"
Height
Adj 53 to 72"
Shaft Dia.
1/2"
Outside Dia.
20"
Width
24"
Depth
26 1/2 in
Fan Cord Length
25 ft
Height Adjustment
53 to 72 in

Details

Oscillation
Non-Oscillating
Number of Speeds
3
Phase
1
Drive Type
Direct
Blade Material
Steel
Sound Level
60/52dBA
Hz
60
Number of Blades
3
Requires
Assembly
Air Velocity @ 20 Ft.
190/270/310 fpm
NEMA Plug Configuration
5-15P with GFCI
Fan Style
Misting
Assembled
No
Bearing Type
Sealed Ball
Voltage
115VAC
Motor Type
Permanent Split Capacitor
Motor Insulation
Class A
CFM Medium
1800
Includes
14 gal. Tank, 7 hr. Run Time, 8" Rubber Casters, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs
Max. Ambient Temp.
107 Degrees F
Motor HP
1/10
CFM Low
1400
Watts
130
Application
Spot Cooling and People Cooling
Item
Mobile Misting Air Circulator
Motor RPM
1000/1400/1570
Fan Mounting Location
Pedestal
Thermal Protection
Auto
Fan Accessory Style
Misting
Housing Material
Steel
Guard Material
Steel
Number of Conductors
3
Mobile/Stationary
Mobile
Motor Enclosure
Totally Enclosed Air-Over
Standards
UL507 Motor and OSHA Guard
Full Load Amps
1.45
Wire Guard Finish
White Powder Coated
CFM High
2200
Environmental Applications
Industrial
Frame Material
Steel
Amps
1.5/1.3/1
Wheeled Base
Mobile
Fan Housing Material
Steel
RPM
1000/1400/1570
Air Flow
1400/1800/2200 CFM
Assembly Required
Yes
Material
Steel

Description

Misting Air Circulator, Blade Dia. 18 In., Mobile, Non-Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 3000, CFM Low 2000, Air Velocity (FPM) @ 20 Ft. 190/270/310, Motor HP 1/10, Motor RPM 1000/1400/1570, Operating Amps 1.5/1.3/1, Mounting Location Pedestal, Commercial, Assembled Unassembled, CFM Medium 2600, Outside Dia. 20 In., Includes 14 gal. Tank, 7 hr. Run Time, 8 In. Rubber Casters, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs
