  9. Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 10,900/16,600 cfm

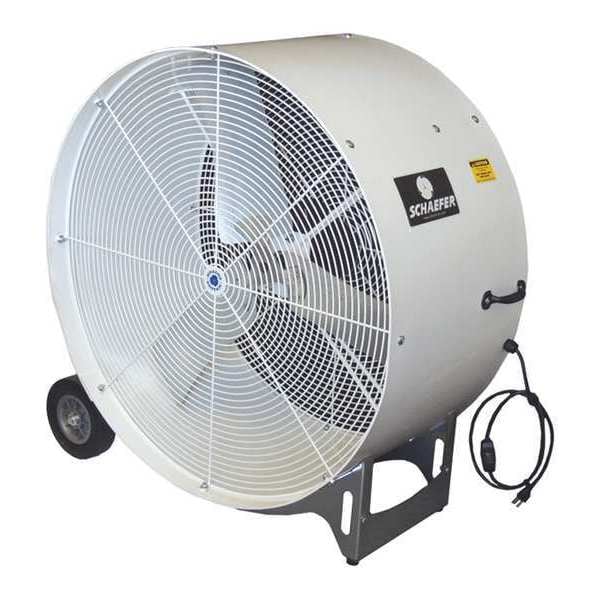

Schaefer Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 10,900/16,600 cfm VKM36-2-O - main

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 10,900/16,600 cfm

  • Mfr # VKM36-2-O

  • Zoro # G8915821

product price: $998.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
36 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VKM36-2-O
Zoro #
G8915821
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
36 in
Outside Dia.
37-1/4 in
Height
39-3/4 in
Max. Depth
19-3/4 in
Width
40-3/4 in
Shaft Dia.
1/2 in
Depth
19 3/4 in
Fan Cord Length
12 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/2
Air Flow
10,900/16,600 cfm
Drive Type
Belt Drive
Blade Material
Aluminum
Sound Level
77 dBA
Item
Air Circulator
CFM High
11000
Environmental Applications
Industrial
Motor Insulation
Class B
Mobile/Stationary
Mobile
CFM Low
7700
Bearing Type
Ball, Permanently Lubricated and Sealed
Application
Spot Cooling and People Cooling; Air Circulation
Includes
Stacking Tabs
Thermal Protection
Automatic
Air Velocity @ 10 Ft.
725/525 fpm
Max. Ambient Temp.
104 Degrees F
Motor RPM
1,075/850 RPM
Air Velocity @ 40 Ft.
400/225
Fan Style
Standard Duty
Motor Type
Permanent Split Capacitor
Watts
485/328 W
Assembled
Yes
Fan Mounting Location
Floor
Number of Blades
3
Air Velocity @ 20 Ft.
600/450 fpm
CFM/Watt
22.7/23.5
Fan Accessory Style
Standard
Hz
60
Standards
OSHA-Compliant wire guards
Guard Material
Steel
Motor Enclosure
Totally Enclosed Air Over
Wire Guard Finish
Gloss Powder Coated
Housing Material
Polyethylene
RPM
1075/850
Amps
5.2/3.5
Fan Housing Material
Polyethylene
Assembly Required
No
Wheeled Base
Mobile
Material
Polyethylene
Color
White
Motor hp
1/2 hp

Description

Standard-Duty Industrial Fan, Blade Dia. 36 in, Mobile, Non-Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 11,000, CFM Low 7700, Air Velocity @ 20 Ft. 600/450 fpm, Motor HP 1/2 hp, Motor RPM 1075/850, Operating Amps 5.2/3.5, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 1075/850, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 485/328, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 37-1/4 In., Height 39 3/4 in
